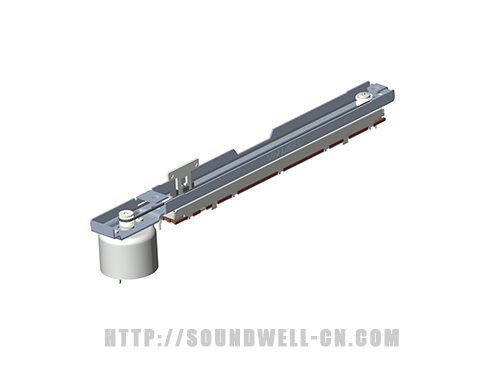

SM10004 motorized slide potentiometer
| Model: | SM10004 series |
| Name: | 100mm Travel Motorized Slide Potentiometer |
| Main Specifications: | Maximum operating voltage: AC 200V Motor working voltage: 3 ~ 7V DC Sliding force: 10～90gf Working temperature: -10°C~60°C Sliding travel: 100mm±0.5mm Operating life: 30,000 Min |
| Features: |
Motor- driven slide potentiometer with reliable performance and high endurance; Touch sense function Incorporated; Available in many different variants. |
| Applications: | Mainly used in mixers, high-grade electronic organs, 3D display equipment, stage equipment, medical equipment and household appliances and other fields. |
ONE、MECHANICAL CHARACTERISTIC
1. Sliding Force: 10~90gf
2. Slide Travel: 100mm±0.5mm
3. Lever Stop Strength: ≥5Kgf
4. Shaft Wobble (mm p-p): 1.6mm Max.
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 10KΩ± 20%
2. Resistance Taper: 0B
3. Rated Power: 0.5W
4. Max. Operating Voltage: AC 200V
5. Insulation Resistance: 100MΩ 1 Minute at DC 250V
6. Dielectric Voltage: 1 Minute at AC 250V
7. Motor Working Voltage: DC 3~7V
8. Touch Sense Track: With
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 30,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
Download the SM10004 Motor Drive Potentiometer.pdf
