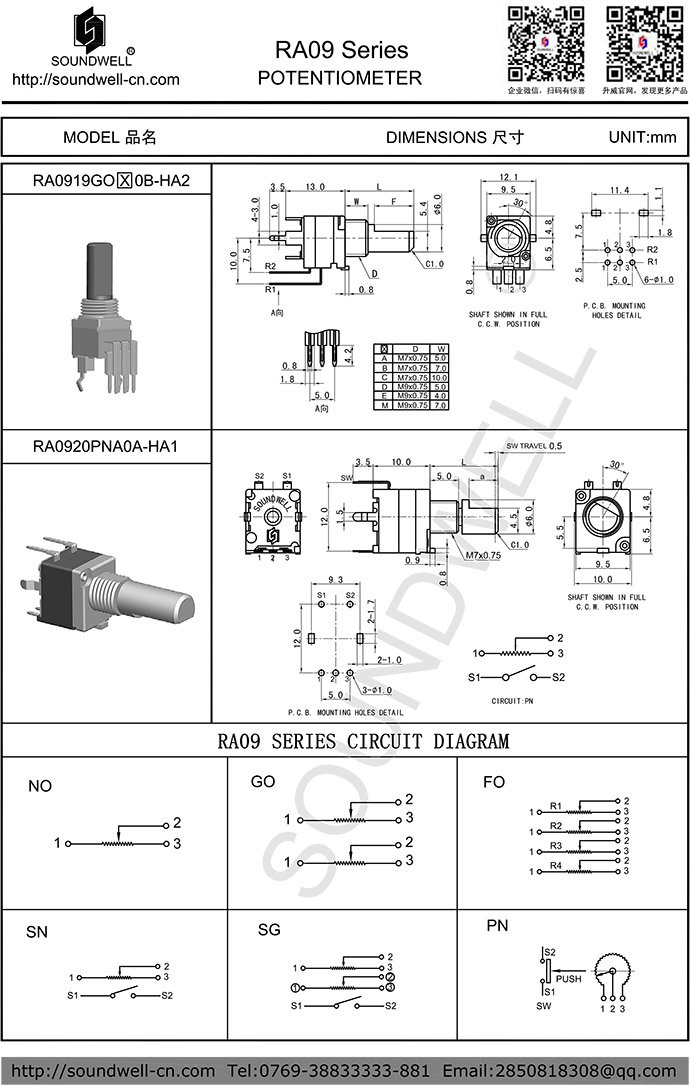

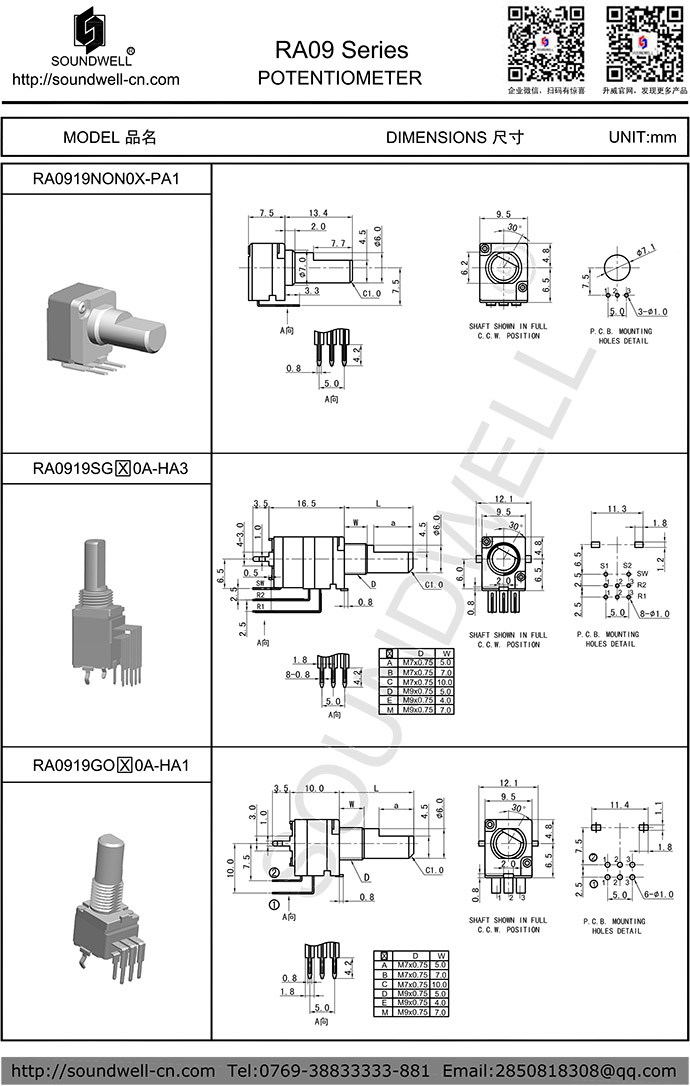

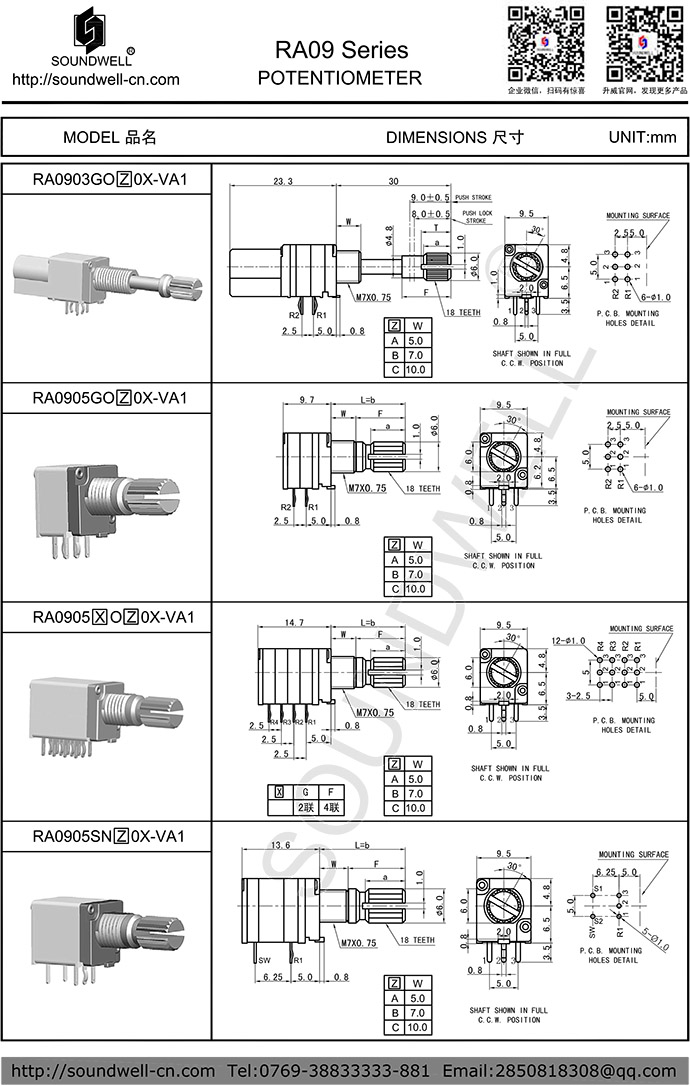

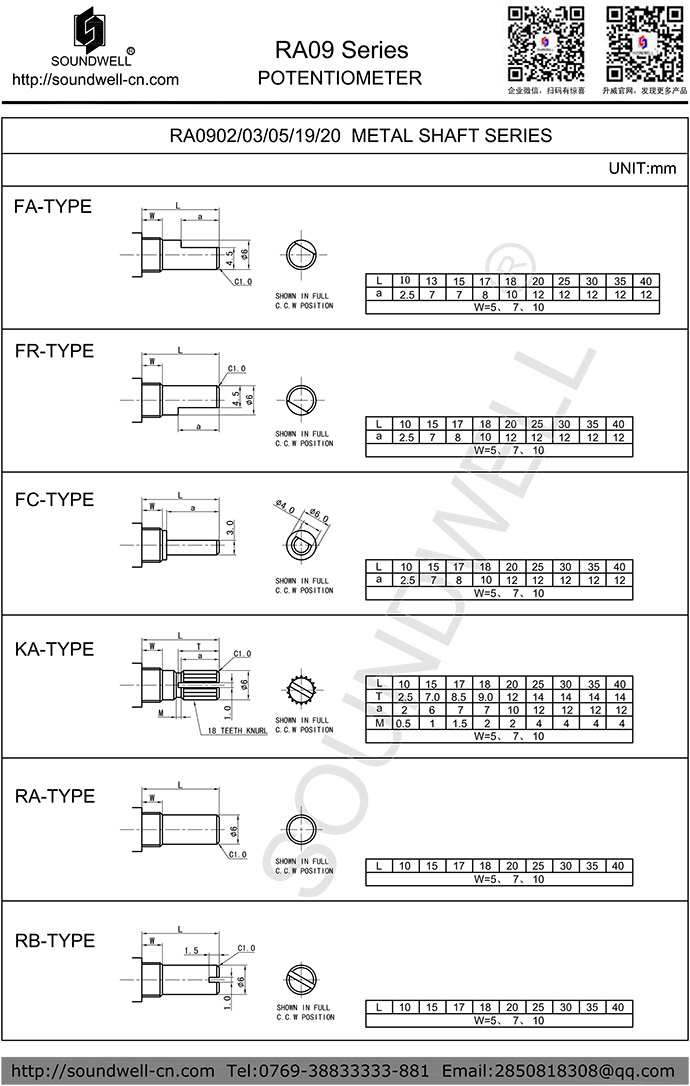

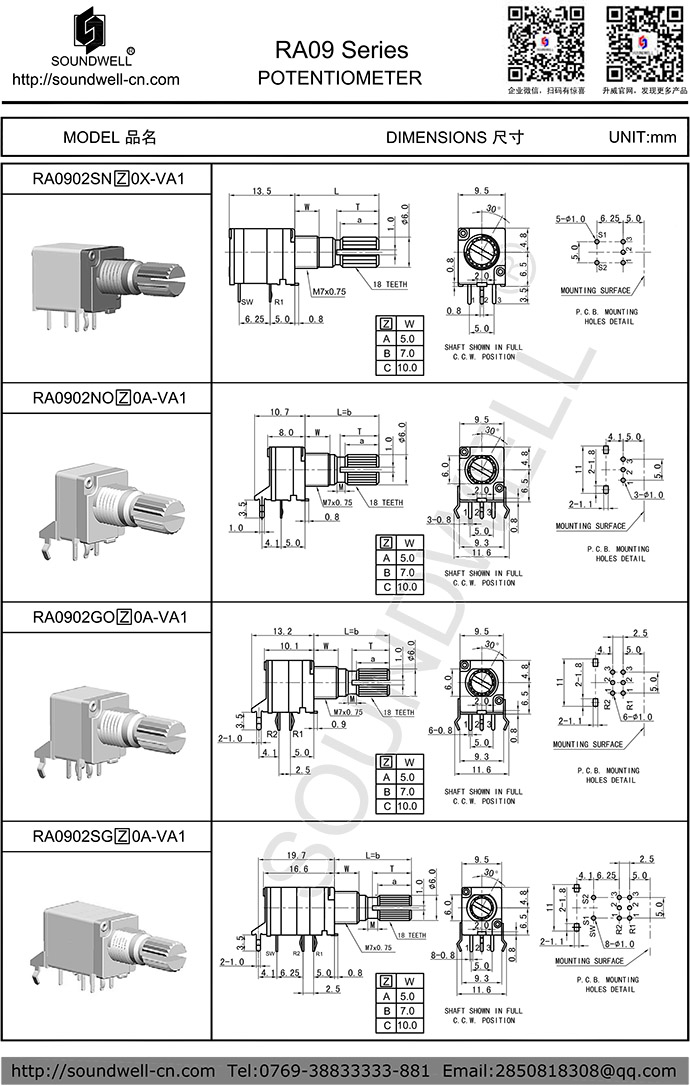

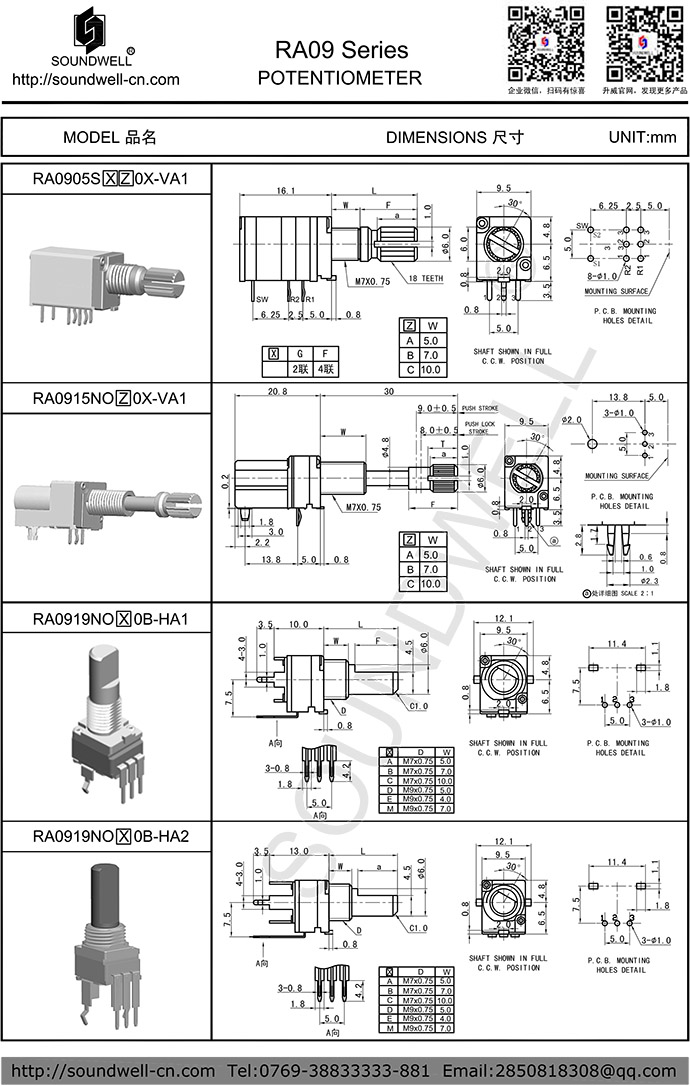

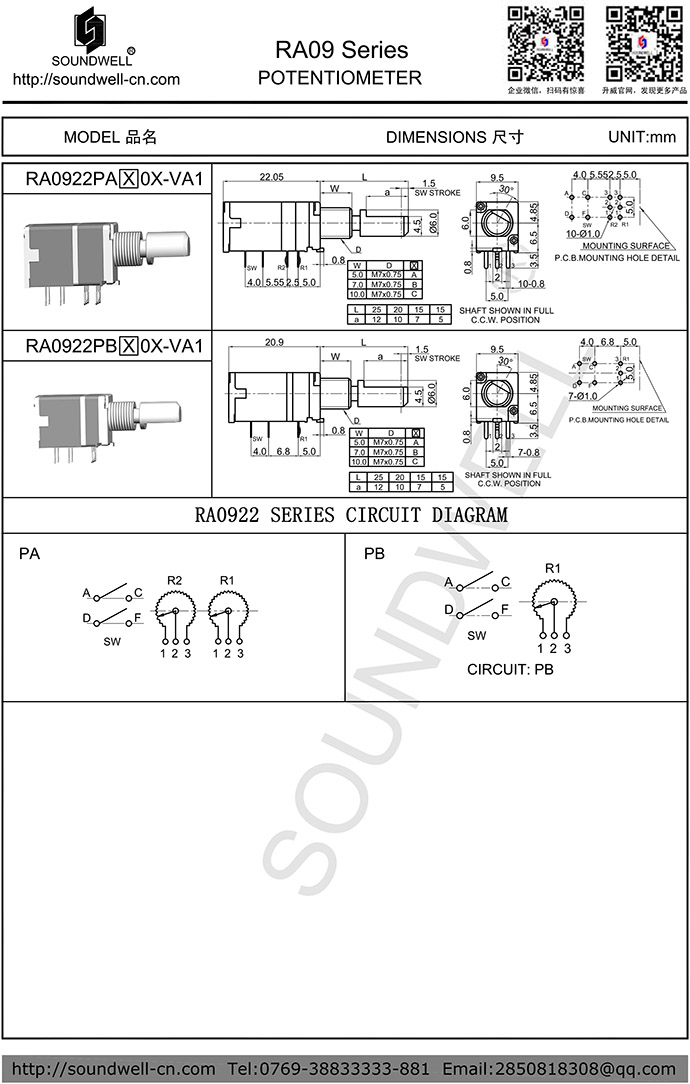

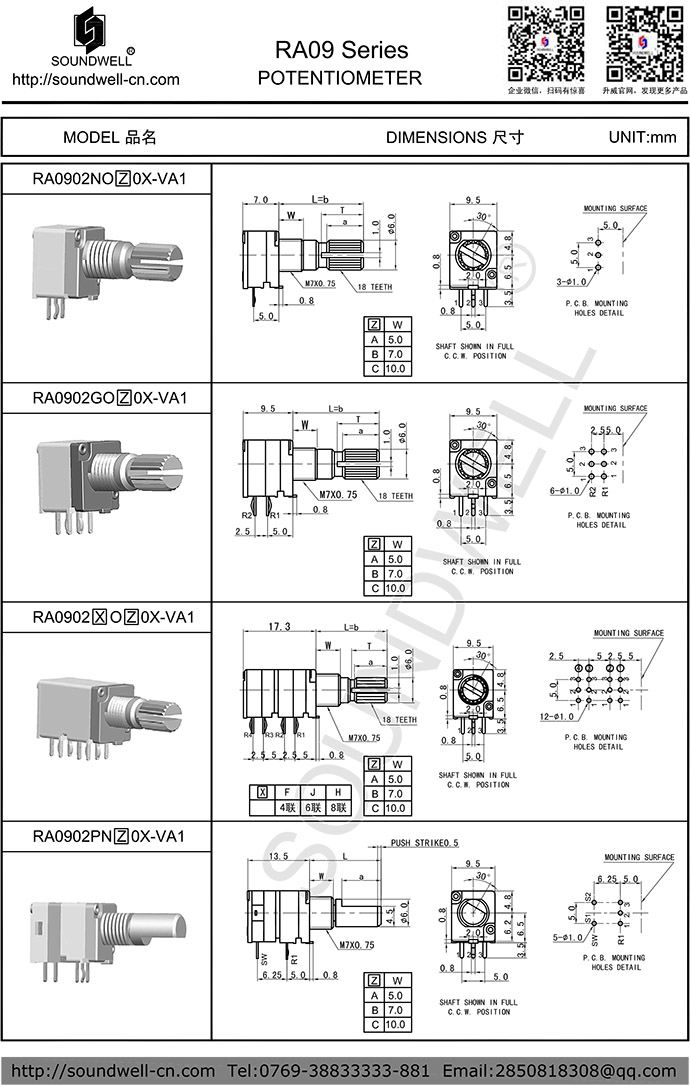

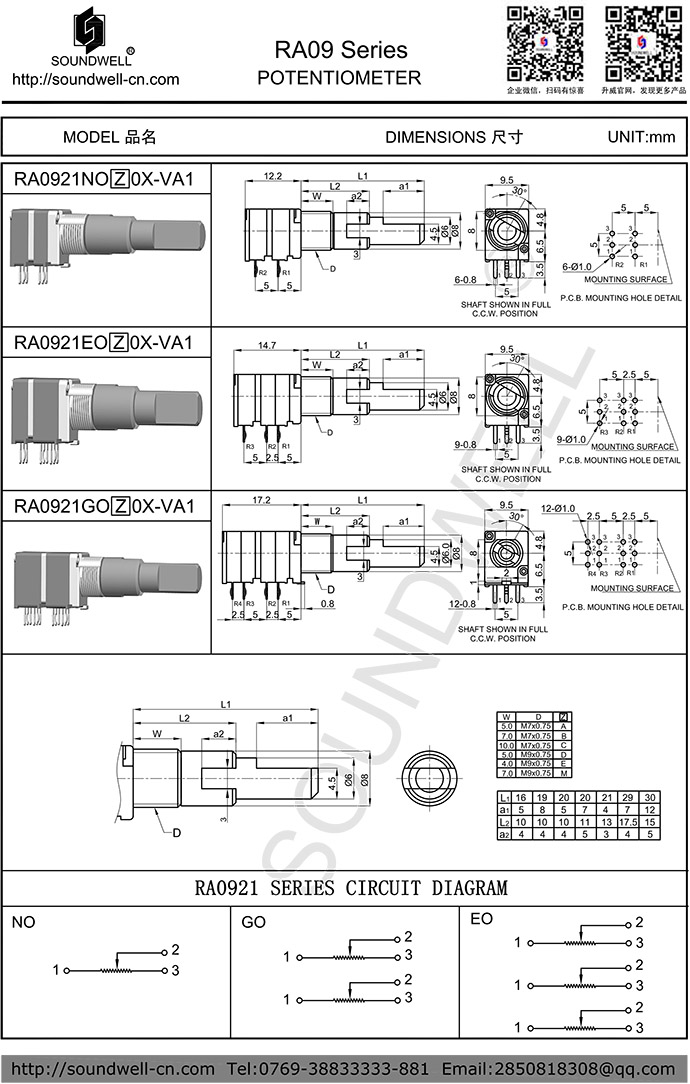

| Potentiometer model： | RA09 series |
| Name： | Metal Shaft Rotary Potentiometer |
| Main Specifications: |
Dimensions: 9.5mm Rotational life: 10,000 cycles Min |
| Product Features： |
Plastic packaging structure, can effectively cope with wave soldering; Good product sealing; Can be with positioning; With push switch or rotary switch; Shaft length and shape can be adjusted; Various mounting options to choose from. |
| Applications： |
Multi- coal audio amplifiers, walkie- talkies and other electronic equipment, can also be used in home appliances, medical equipment. The main functions are to adjust the volume, pressure regulation, temperature regulation, dimming and other functions. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 20~200gf.cm
2. Total Rotational Angle: 300°±10°
3. Shaft Stop Strength: ≥3.5Kgf.cm
4. Shaft Wobble (mm p-p): 0.7*L/20 Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power Rating: 0.05W
4. Insulation Resistance: 50 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC1250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
