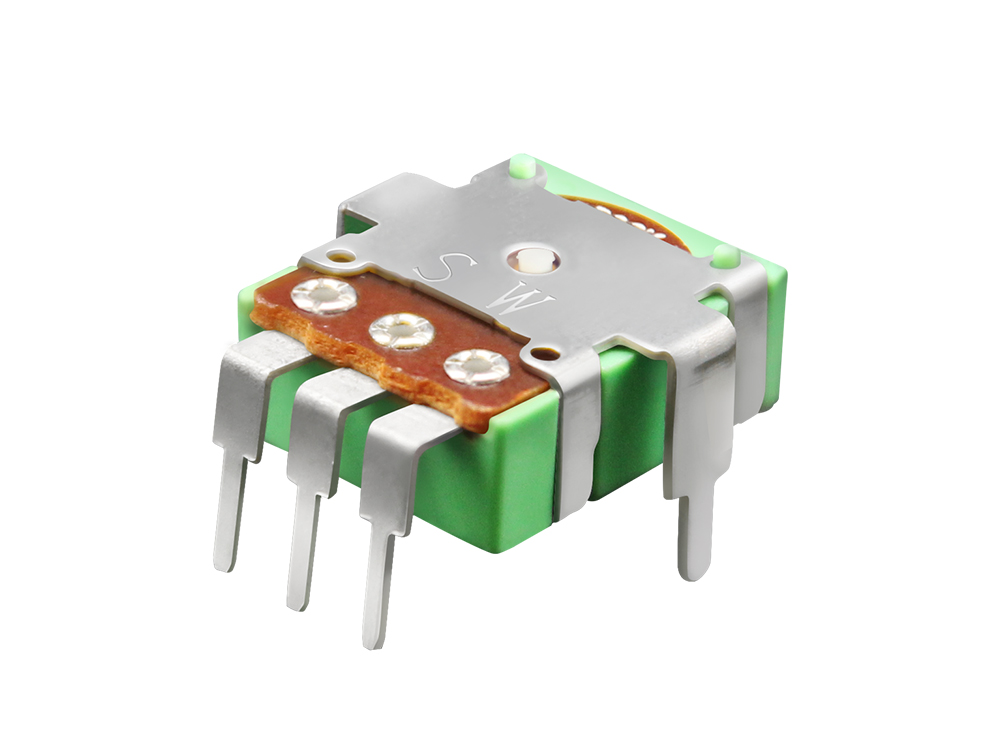

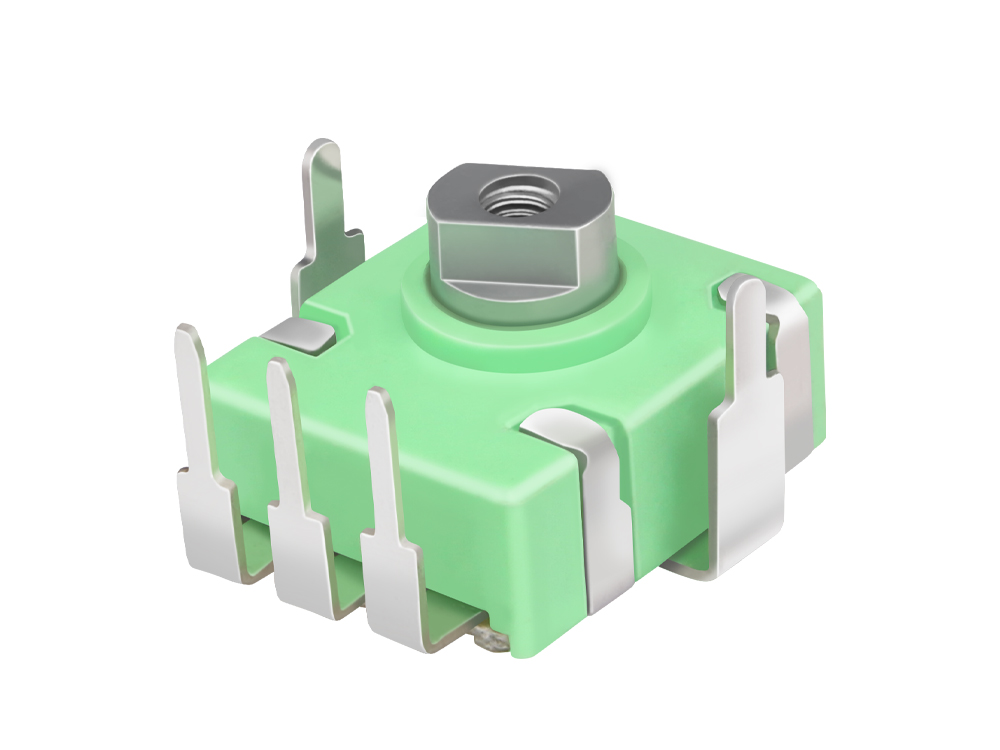

RA13 Metal Shaft Rotary Potentiometer

Series：RA13

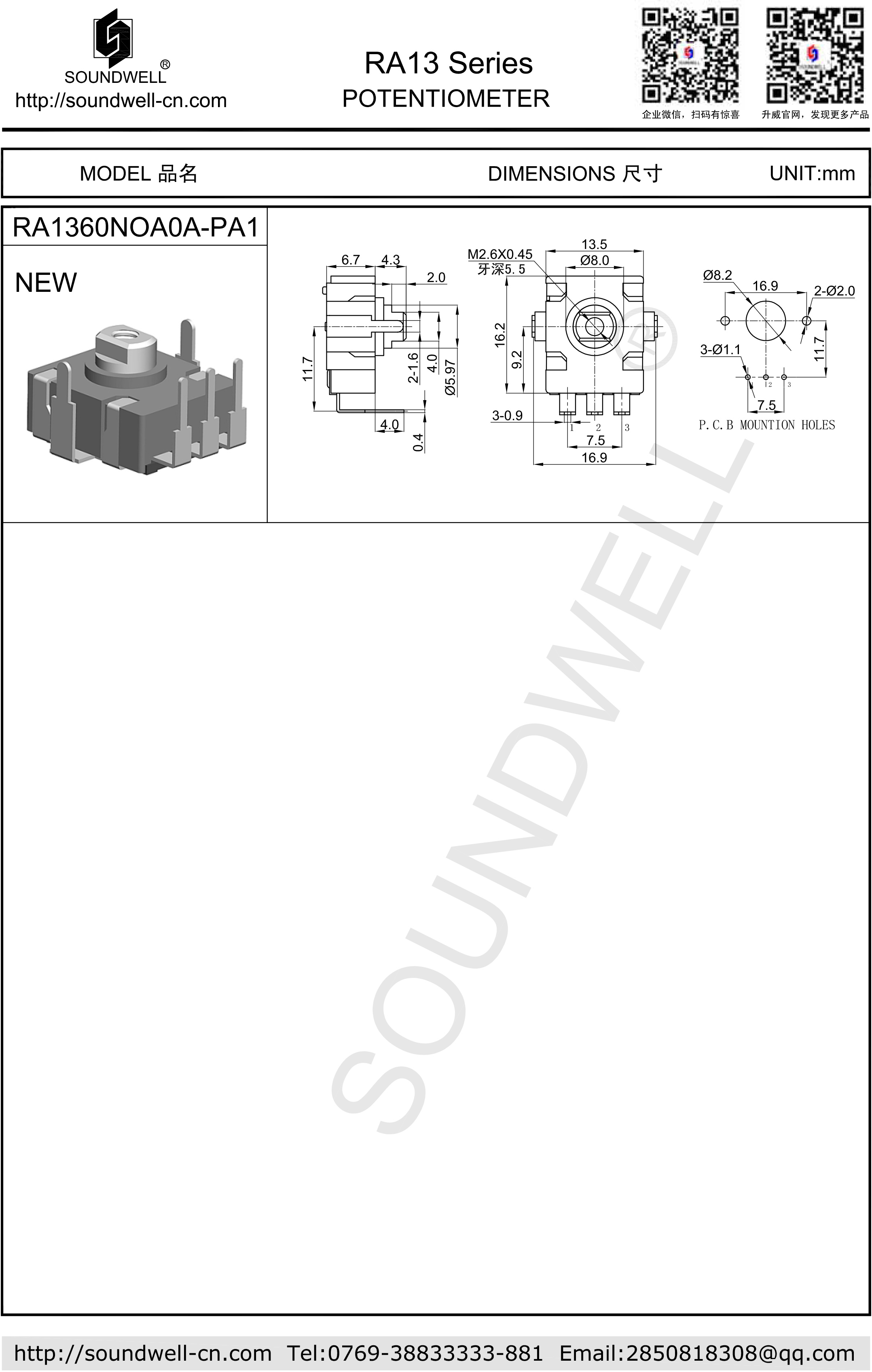

Format：See the following profile

Specifications　　

Potentiometer model：	RA13 series
Name：	RA13 Metal Shaft Rotary Potentiometer
Main Specifications:	Dimensions: 13.5mm; Rotation angle: 180°±10°; Rated power: 0.03W; Maximum operating voltage: AC 50V/DC 20V; Operating temperature: -10℃～70℃; Rotational life: 30,000 cycles Min;
Product Features：	Shaft lockable screw fixing knob saves space; Reliable performance with smooth feel;
Applications：	Professional audio and other related electronic devices. It is mainly used for adjusting the table, adjusting the volume and adjusting the temperature.

RA13 Product Specifications

ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 50~200gf.cm
2. Total Rotational Angle: 180°±10°　
3. Shaft Stop Strength: ≥3Kgf.cm

TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1M, ±30%
2. Resistance Taper: B
3. Rated Power: 0.03W
4. Max. Operating Voltage: 50V AC/20V DC
5. Insulation Resistance: 100M? 1 Minute at DC 250V
6. Dielectric Voltage: 1 Minute at AC 250V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
