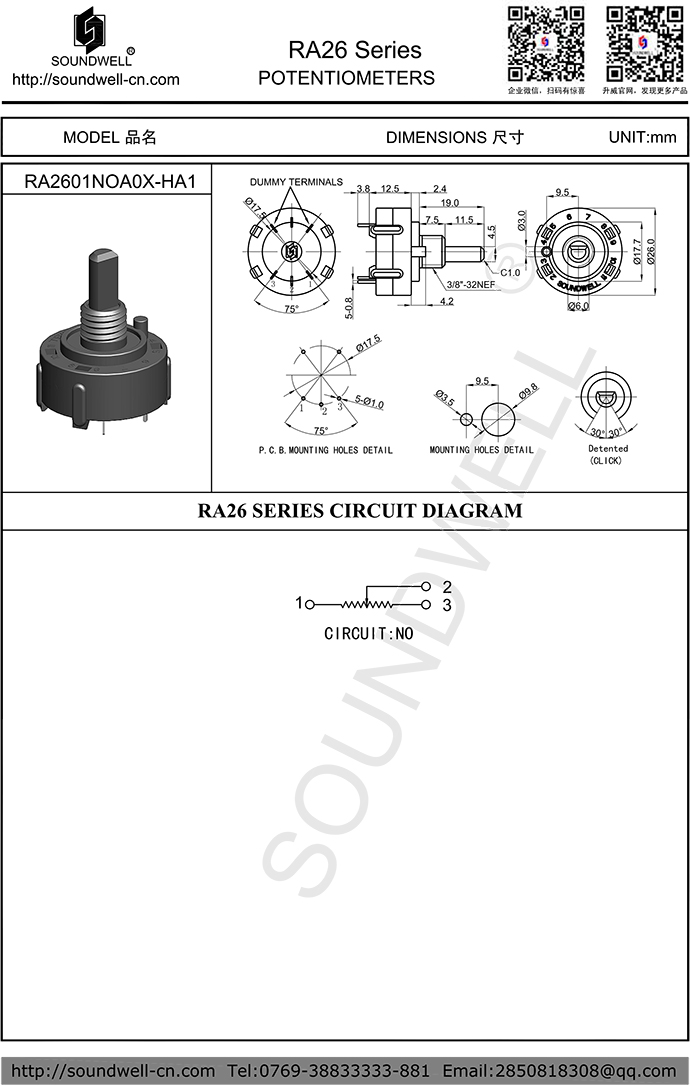

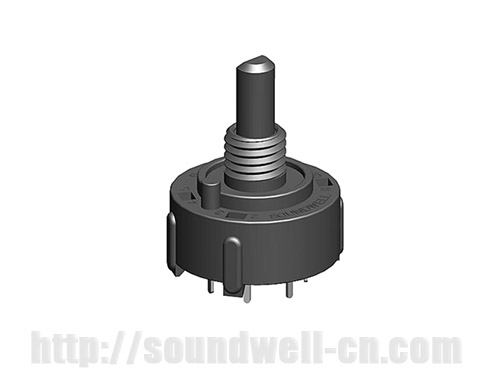

RA26 insulated shaft rotary potentiometer
| Potentiometer model： | RA26 series |
| Name： |
RA26 Insulated Shaft Rotary Potentiometer |
| 主要規(guī)格: |
Dimensions: 26mm; Rated power: ≤0.2W; Resistance tolerance: ±20%; Operating temperature: -10℃～70℃; Rotational life: 50,000 cycles Min; |
| Product Features： |
Sealed design with long life; Applicable for SMT reflow soldering. |
| Applications： |
Automotive electronics, home appliances and other related electronic devices. The main functions are to adjust the volume, adjust the wind speed, adjust the temperature, dimming, etc. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 50~400gf.cm
2. Detent torque: 200~600gf.cm
3. Rotational angle: 300°/360°
4. Nut tightening strength: ≥8Kgf
5. Shaft wobble: 0.7*L/30mmp-p Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power Rating: ≤ 0.2W
4. Insulation Resistance: 100M? 1 Minute at DC 250V
5. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
