RB16 insulated shaft rotary potentiometer
| Potentiometer model： | RB16 series |
| Name： |
RB16 Insulated Shaft Rotary Potentiometer |
| Main Specifications: | Total resistance error: ±20% Total rotational angle: 300±10° Rated power: 0.2W Operating temperature: -10°C~60°C Rotational life: 10,000 cycles Min |
| Product Features： |
Insulated shaft with reliable performance; Available in many different variants. |
| Applications： |
Professional audio, home appliances and other related electronic devices. It mainly plays the role of adjusting volume, voltage and temperature. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30~200gf.cm
2. Total rotation angle: 300±10°
3. Shaft stop strength: ≥6.0Kgf
4. Shaft Wobble: 0.7*L/20mmp-p Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power Rating: 0.2W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min

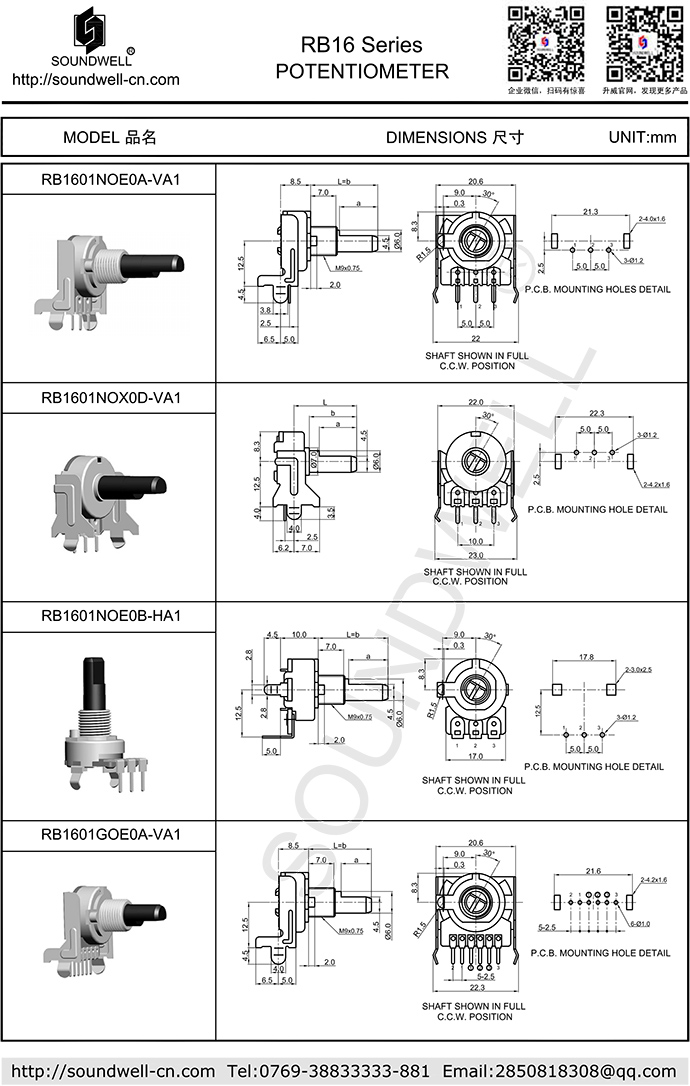

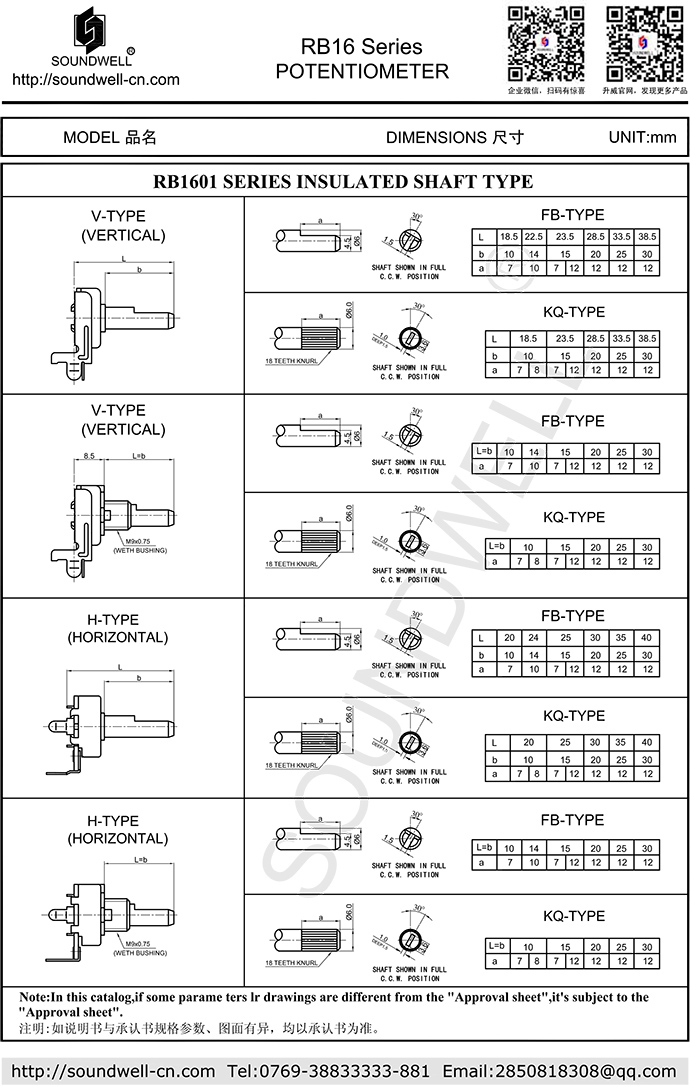

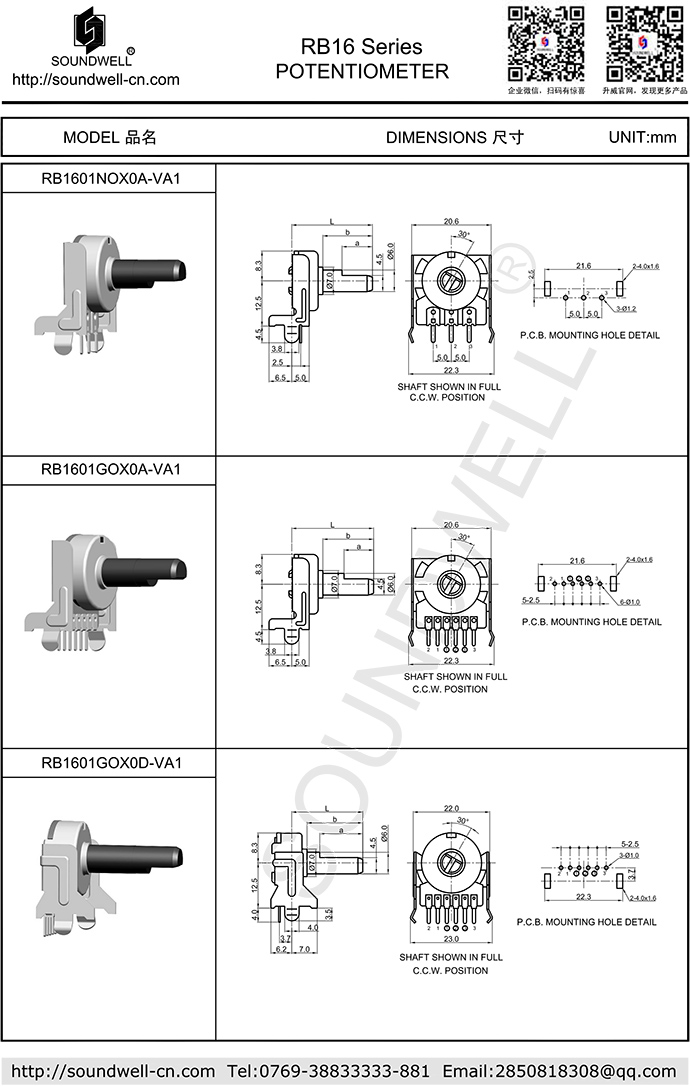

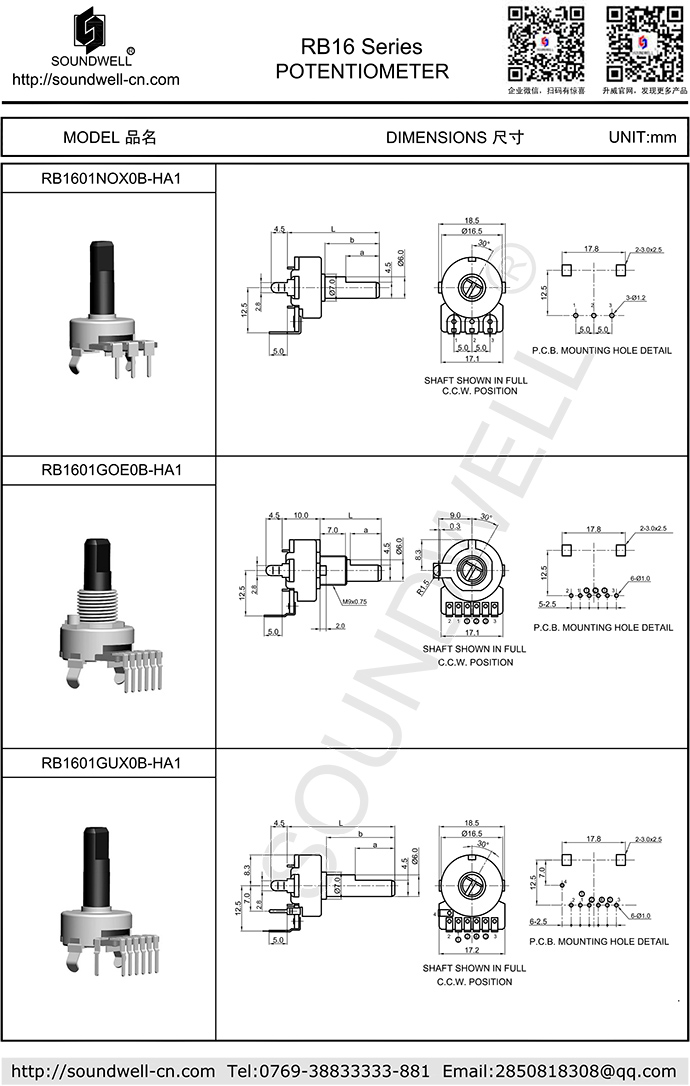

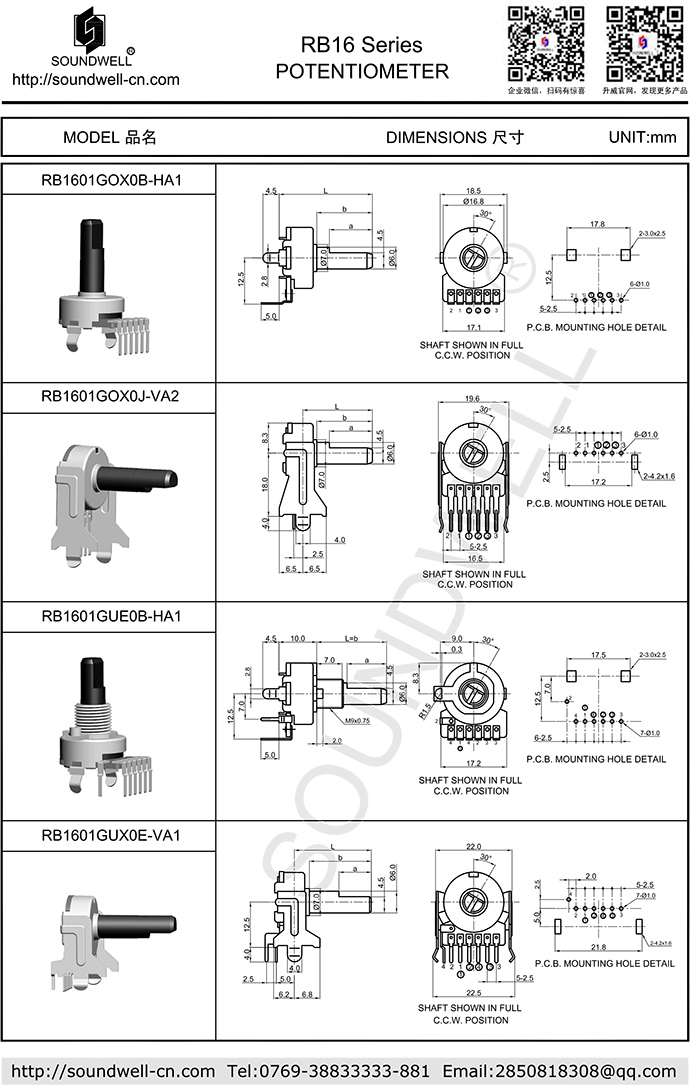

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
