RC1003 thumb-wheel Rotary potentiometer

RC1003 thumb-wheel Rotary potentiometer

  • Series:RC1003

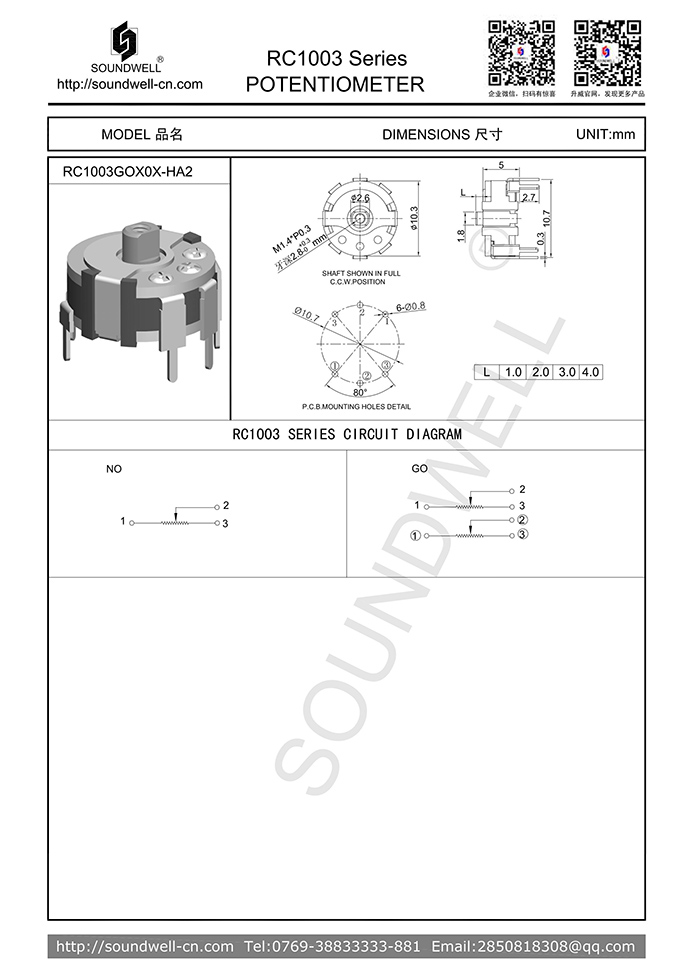

  • Format:See the following profile
  • Specifications

    Potentiometer model: RC1003 series
    Name:

    RC1003 Thumb-wheel Rotary Potentiometer

    Main Specifications:

    Dimensions: ∮10mm;
    Resistance tolerance: ±20%;
    Rotation angle: 230°±10°
    Rated power: 0.05W;
    Operating temperature: -5°C~50°C;
    Rotational life: 5,000 cycles Min;

    Product Features:

    Small size;

    Knobs can be mounted to the shaft by screws.

    Applications:

    Radios, headphones and other related electronic devices.

    It plays a role of volume control and frequency modulation.

    RC1003 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational torque: 5~100gf.cm
    2. Total rotational angle: 230°±10°
    3. Shaft stop strength: ≥1Kgf.cm
    4. Shaft wobble: 0.6mm Max

    TWO、ELECTRICAL CHARACTERISTIC
    1. Total Resistance Range: 100K?±20%
    2. Resistance Taper: B
    3. Power Rating: 0.05W
    4. Insulation Resistance: 20MΩ 1 Minute at DC 250V
    5. Dielectric Voltage: 1 Minute at AC 100V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational life: 5,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
