RJ13 Joystick potentiometer

  • Series:RJ13
  • Format:See the following profile
  • Specifications

    Potentiometer model: RJ13 series
    Name: Insulated Shaft Joystic Potentiometer
    Main Specifications:

    Dimensions: 13mm;
    Rated power: 0.0125W;
    Voltage divider error: 44%~56% ;
    Operating angle: 26° Max;
    Operating temperature: -10℃~70℃;
    Rotational life: 2,000,000 cycles Min;

    Switch Specifications:

    Operating force: 740±300gf;
    Contact resistance: 100MΩ Max;
    Push operating life: 1,000,000 cycles Min.

    Product Features:

    Long life with smooth operation;

    High precision and good impact resistance.

    Applications:

    Mainly applied to a game pad, electronic toys field;

    Main function: Game manipulation, menu selection, etc

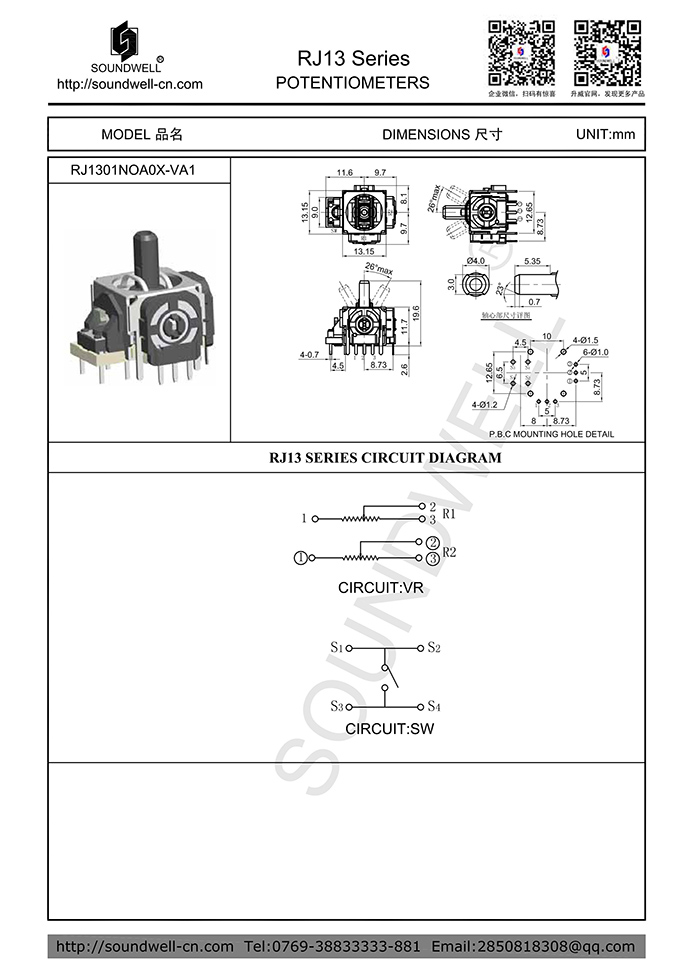

    RJ13 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Lever Operating Force: 120±70 gf
    2. Operating angle: 26° Max

    TWO、ELECTRICAL CHARACTERISTIC
    1. Rated power: 0.0125W
    2. Maximum operating voltage: AC 50V DC 5V
    3. Voltage divider error: 44%~56%
    4. Insulation resistance: 100M? 1 Minute at DC 250V
    5. Dielectric voltage: 1 Minute at AC 250V

    THREE、SWITCH CHARACTERISTICS
    1. Operating force: 740±300gf
    2. Contact resistance: 100MΩ Max
    3. Rated power: DC12V 50mA

    FOUR、ENDURANCE CHARACTERISTIC
    1. Rotational life: 2,000,000 cycles Min
    2. Push operating life: 1,000,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".

    DownloadRJ13.pdf
