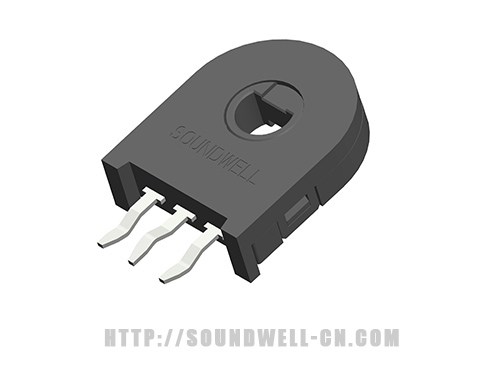

RG1102 ultra-thin 360 degree rotary potentiometer
| model: | RG1102 series |
| name: | Ultra-thin rotary potentiometer |
| Main specifications: |
Dimensions: 11mm Rated power: 0.1W Rotation angle: 360° Linearity error: ±5% Effective electrical angle: 280° ±5° Rotational torque: 0~30 gf.cm Opterating temperature: -40°C~85°C Rotational life: 30,000 cycles Min |
| Features: |
Low profile with smooth operation; Through-shaft design. |
| Application areas: |
Dashboards, small appliances and other related electronic devices. |
ONE、MECHANICAL CHARACTERISTIC
1. Effective electrical angle: 280° ±5°
2. Rotational Torque: 0~30 gf.cm
3. Push-Pull Strength of Shaft: 1kgf MAX
4. Terminal strength: 0.5kgf MAX
TWO、ELECTRICAL CHARACTERISTIC
1. Total resistance: 47KΩ±10%
2. Rated power: 0.1W
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
