EC11 Metal Shaft Incremental Encoder

Series：EC11金屬軸系列

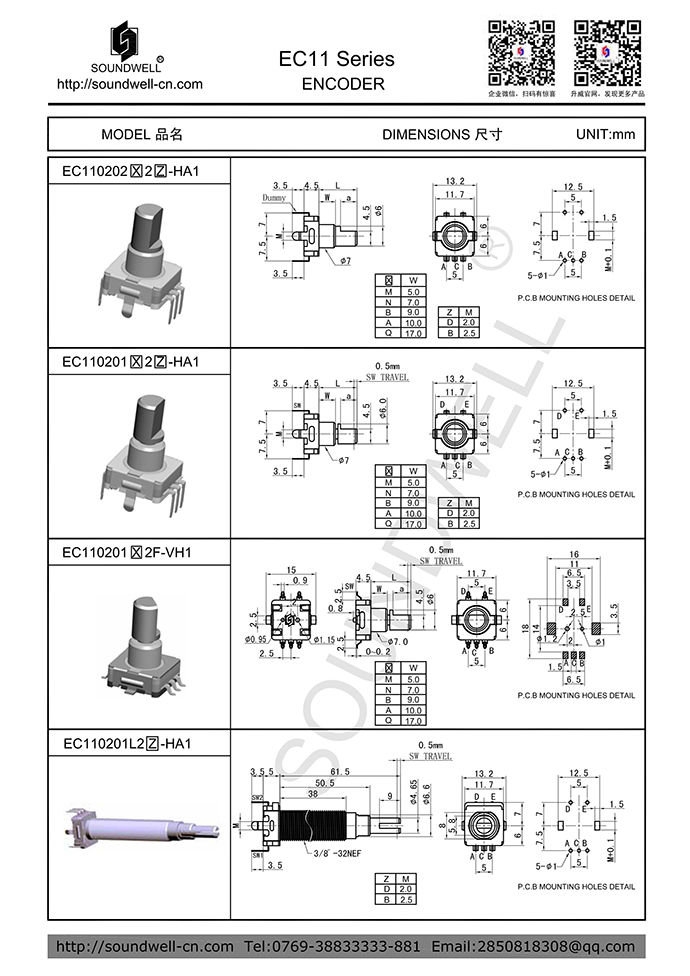

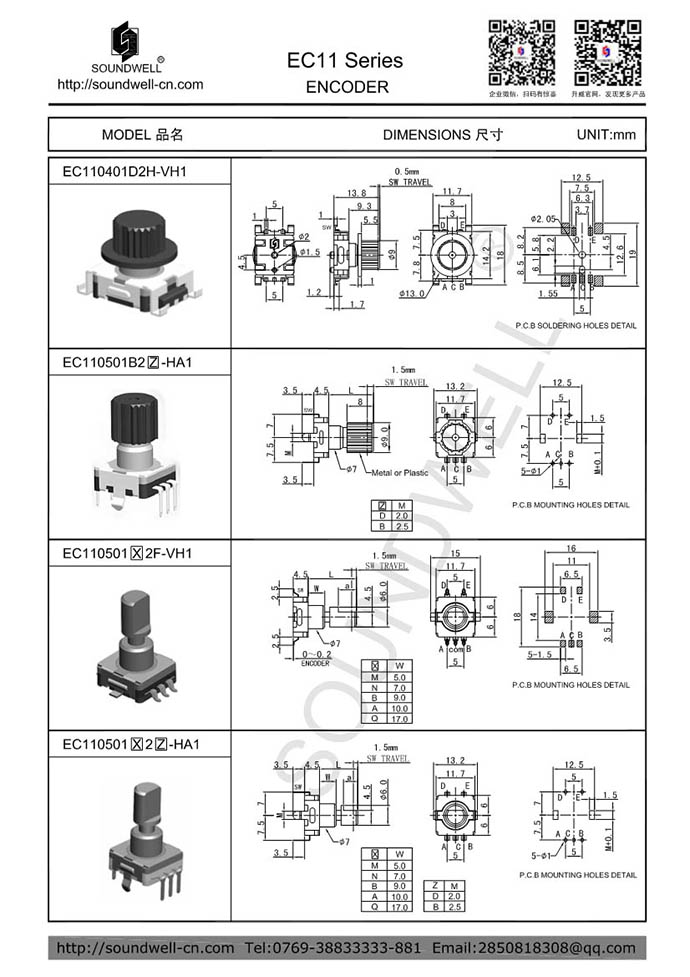

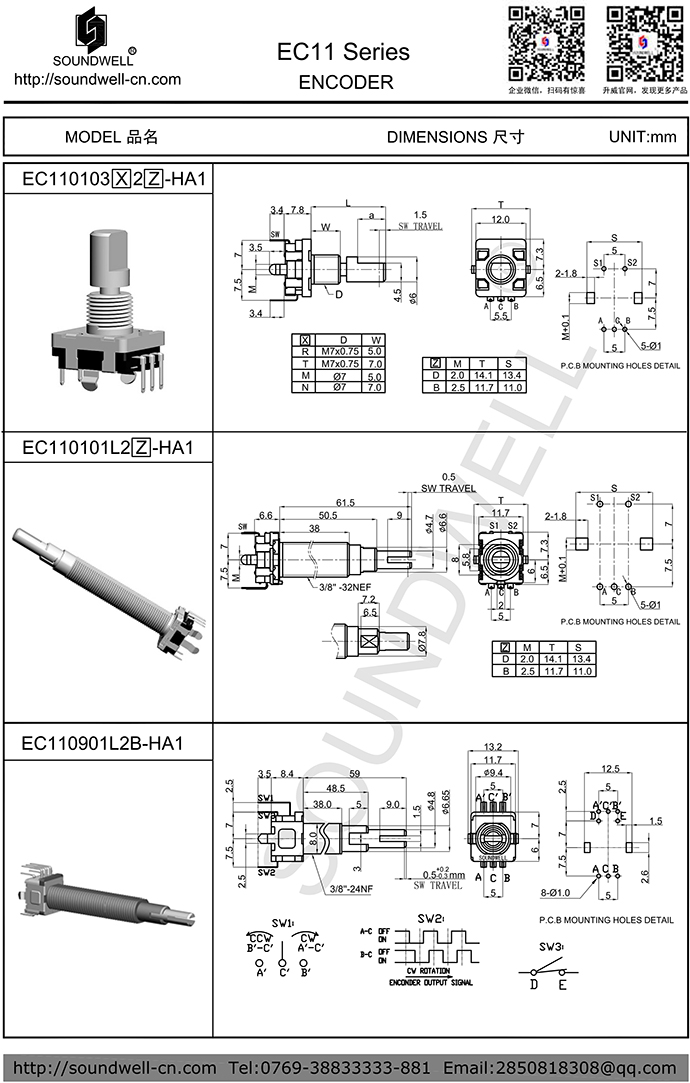

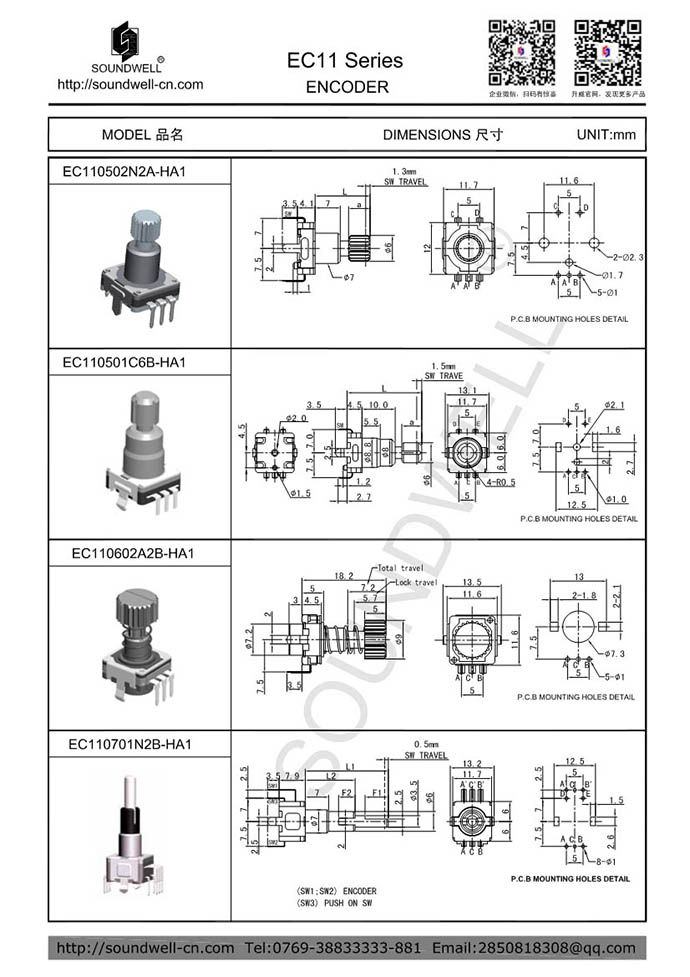

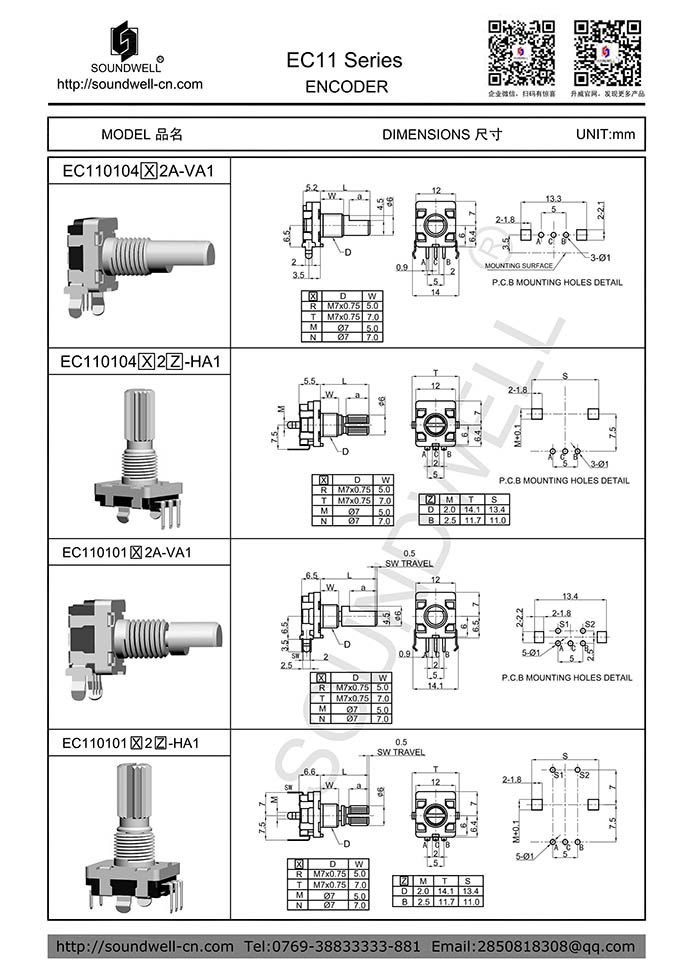

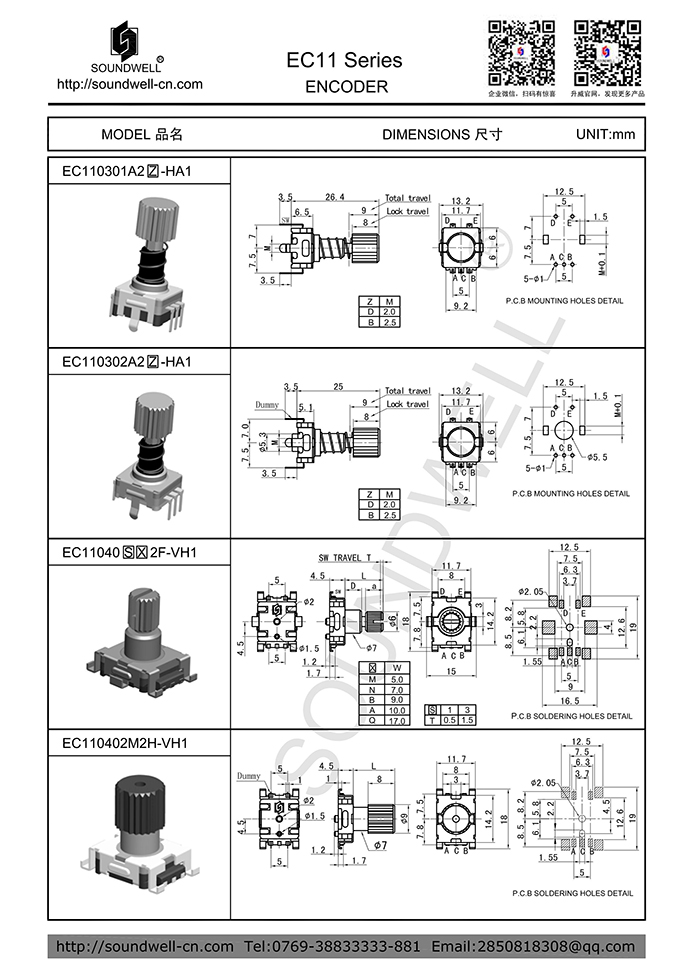

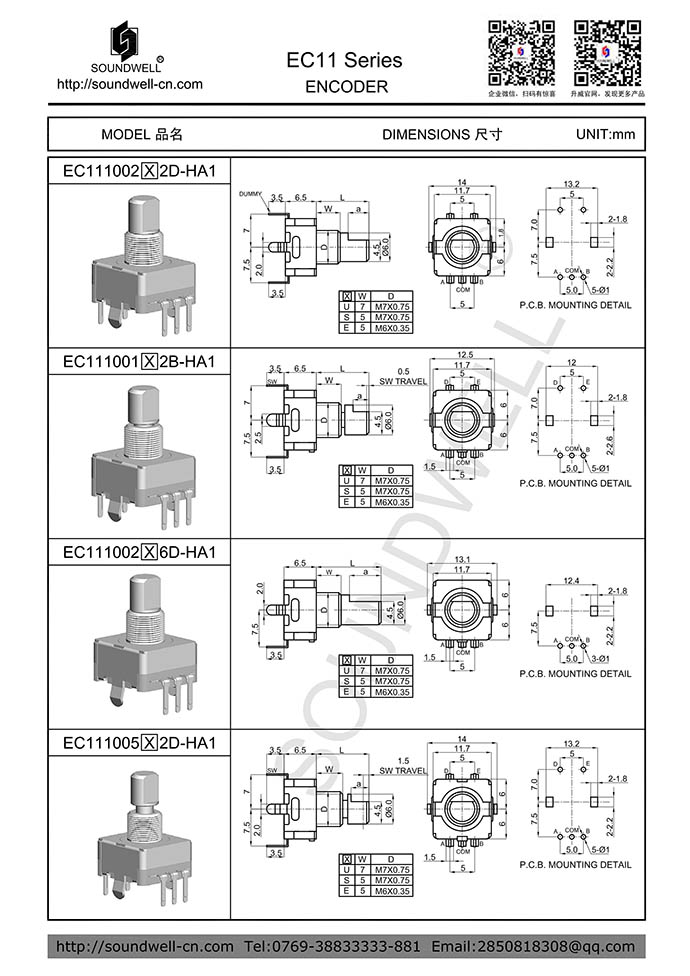

Format：See the following profile

Specifications　　

Encoder model：	EC11 series
Name：	Metal Shaft Incremental Encoder
Main Specifications:	Dimensions: 11mm Rated voltage: DC 5V Number of detent: 16/20/30/32 Pulses: 8/15/16/20 Operating temperature: -40°C~85°C Rotational life: 30,000 cycles Min
Product Features：	Small size encoder with highly reliable performance; Available in many different variants.
Applications：	Automotive electronics, household appliances and other related electronic devices; Mainly used to adjust the volume, temperature, frequency modulation and function switching.

EC11 Product Specifications

ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 20~200gf.cm
2. Number of detent: 16/20/30/32
3. Shaft wobble: 0.2 mm Max
4. Shaft play: 2° Max

TWO、ELECTRICAL CHARACTERISTIC

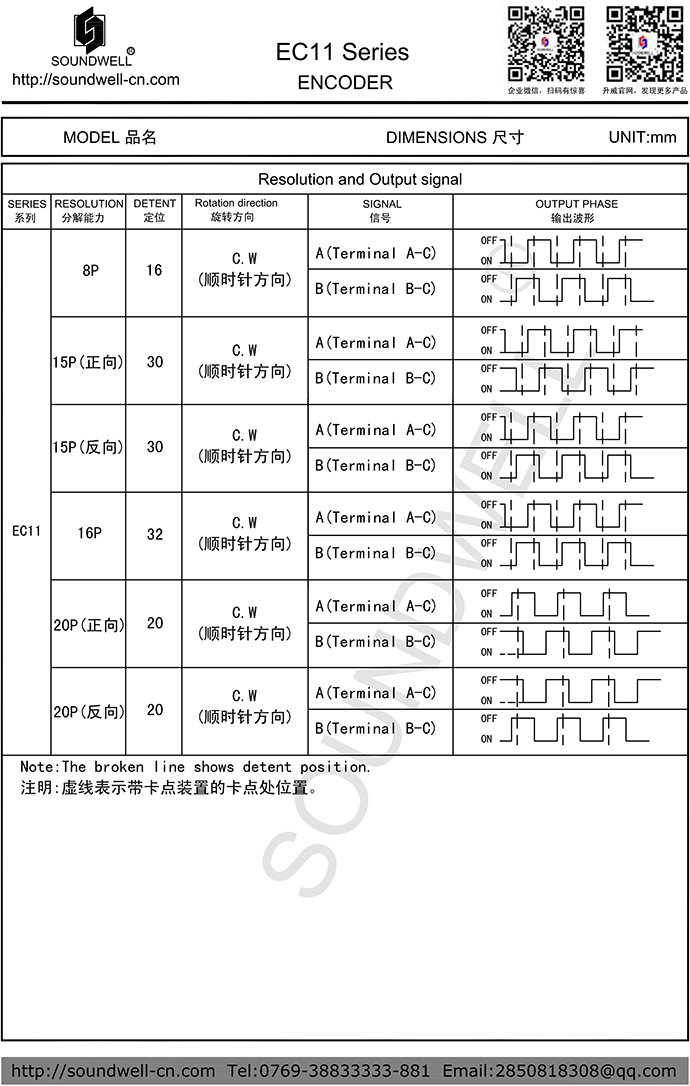

1. Resolution: 8/16/15/20/360°
2. Phase difference: ≥3ms
3. Rated voltage: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 50V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

2. Push operating life: 20,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".
