RP27 Band Switch

Series：RP27

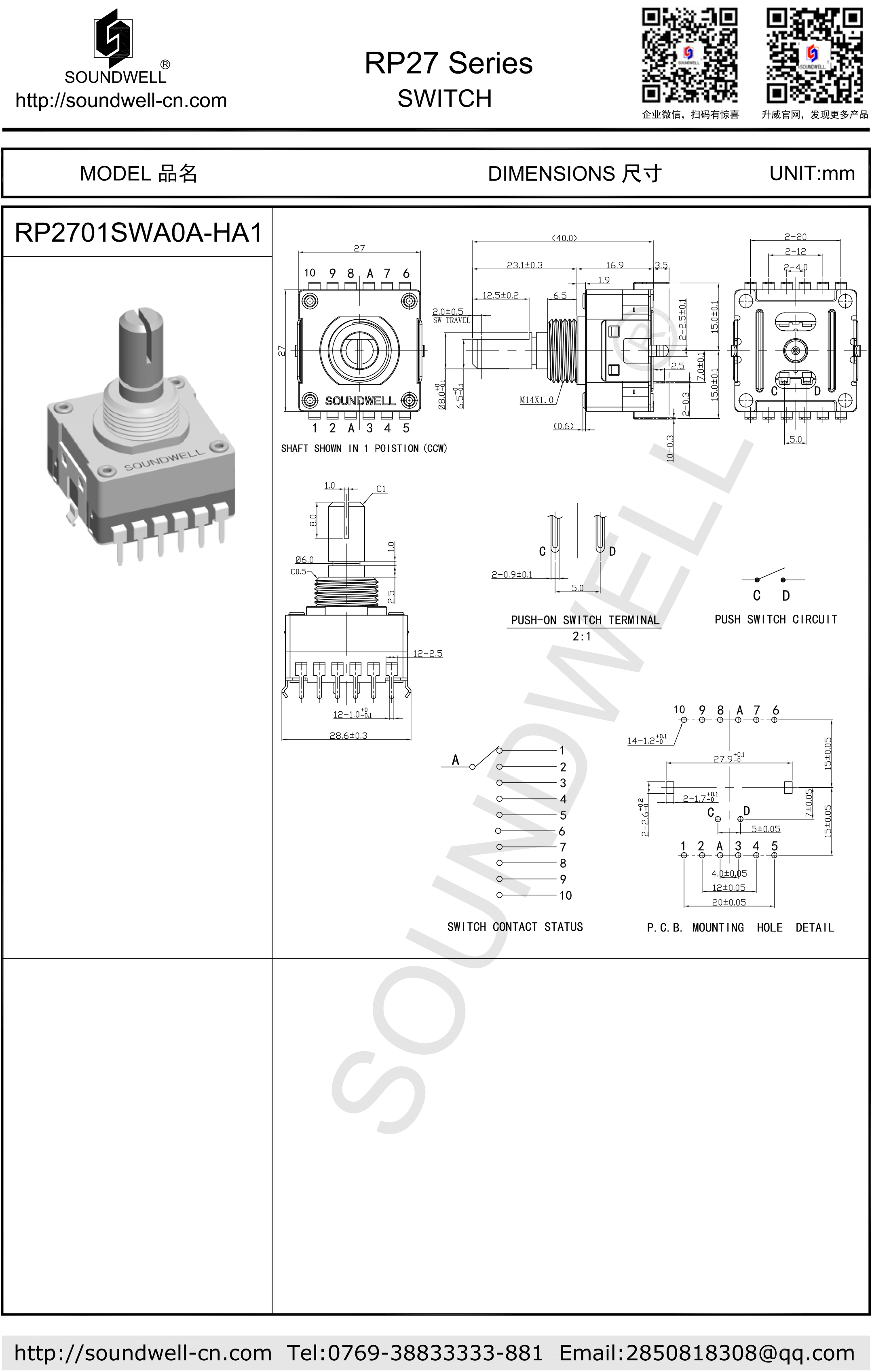

Format：See the following profile

Specifications　　

Encoder model:	RP27
name:	With Push Band Switch
Main specifications:	Dimensions: 27mmX27mm; Rated voltage: DC 30V 0.3A; Rotation torque: 400-600 gf.cm; Working temperature: -40 ℃ ~ + 85 ℃; Spin life: 30,000 times; Contact resistance: 100mΩ Max; Gears / positioning: 10 gears / 10 pcs.
Features:	Metal shaft handle, crisp and obvious positioning, good sealing and high reliability.
Application areas:	Mainly used in gas stoves, microwave ovens, multimedia audio / amplifiers and other household appliances; the main functions are function switching, speed adjustment, temperature adjustment, etc.

Specifications

一、MECHANICAL CHARACTERISTIC
1、Rotational torque ：400~600gf.cm
2、Step angle：36°±3°
3、Number of detent ：10 detents

二、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：100mΩ Max
2、Rating power ：DC30V 0.3A
3、Insulation resistance ：100M? 1 Minute at DC 500V
4、Dielectric voltage ：1 Minute at AC 500V

三、ENDURANCE CHARACTERISTIC
1、Rotational life ：30,000 cycles Min

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
