EC21 Hollow Shaft Incremental Encoder

EC21 Hollow Shaft Incremental Encoder

  • Series:EC21
  • Format:See the following profile
  • Specifications

    Encoder model: EC21 series
    Name:

    EC21 Hollow Shaft Incremental Encoder

    Main Specifications:

     Dimensions: ∮21mm;
     Rated voltage: DC 5V;
     Number of detent: 30;
     Pulses: 15;
     Working temperature: -40°C~85°C;
     Rotational life: 50,000 cycles Min;

    Product Features:

    Low profile;

    Smooth rotational feel and highly reliable performance;

    Hollow encoder to enable flexible design in the center ring.

    Applications:

    Automotive electronics, audio products, household appliances and

    other related electronic devices; It mainly plays the role of adjusting

    volume, and temperature, frequency modulation, function switching

    and so on.

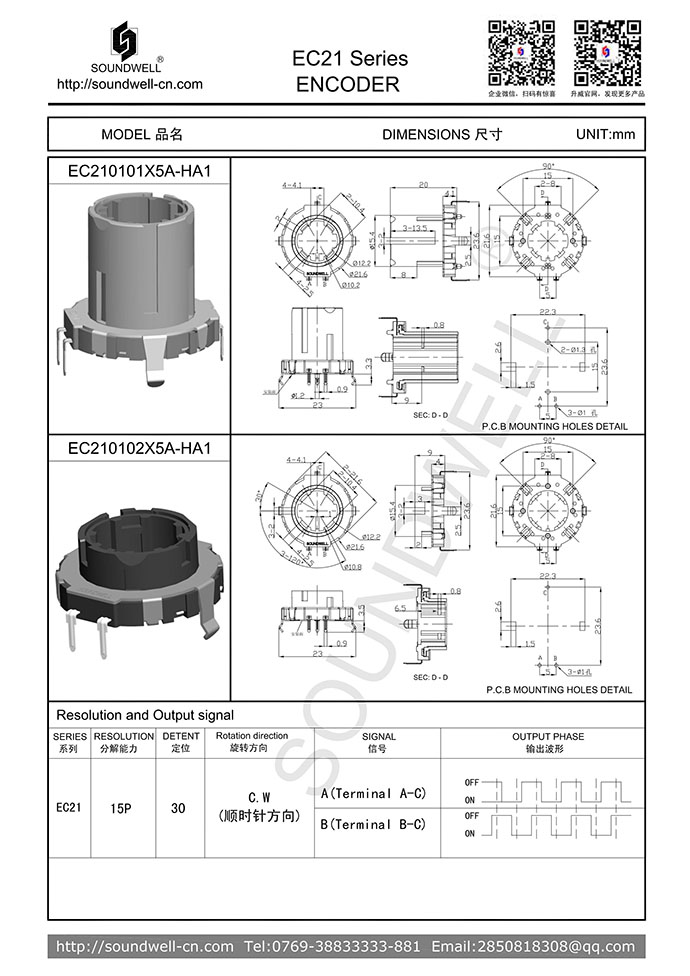

    EC21 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
           1. Rotational Torque: 70±50gf.cm/150±50gf.cm
           2. Number of detent: 30 (Step angle: 12±3°)
           3. Shaft wobble: 0.2 mm MAX
           4. Shaft play: 2° MAX

    TWO、ELECTRICAL CHARACTERISTIC
           1. Resolution: 15 pulses/360°
           2. Phase difference: ≥5 ms
           3. Rated voltage: DC 5V
           4. Insulation  resistance: 10M? 1 Minute at  DC 110V
           5. Dielectric  voltage: 1 Minute at  AC 110V

    THREE、ENDURANCE CHARACTERISTIC
          1. Rotational life: 50,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval   sheet", it's subject to the "Approval sheet".



    DownloadEC21.pdf
