| Encoder Model: | EC56-PA1 series |
| Name: |
EC56 Hollow Shaft Encoder |
| Main Specifications: |
Dimensions: φ56mm Rated voltage: DC5V 1mA Number of detent: 30 Pulses: 15 Operating temperature: -40°C~85°C Rotational life: 50,000 cycles Min |
| Features: |
Low profile with long life; Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring. |
| Applications: |
Household appliances, audio products and other related electronic devices; Mainly used to adjust volume, adjust temperature, and function switching. |
ONE、 MECHANICAL CHARACTERISTIC
1. Rotational torque: 50~200gf.cm
2. Number of detent: 30 (Step angle: 12°±3°)
3. Shaft play: 3°Max
TWO、 ELECTRICAL CHARACTERISTIC
1. Resolution: 15 pulses/360°
2. Phase difference: ≥4ms
3. Rated power: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

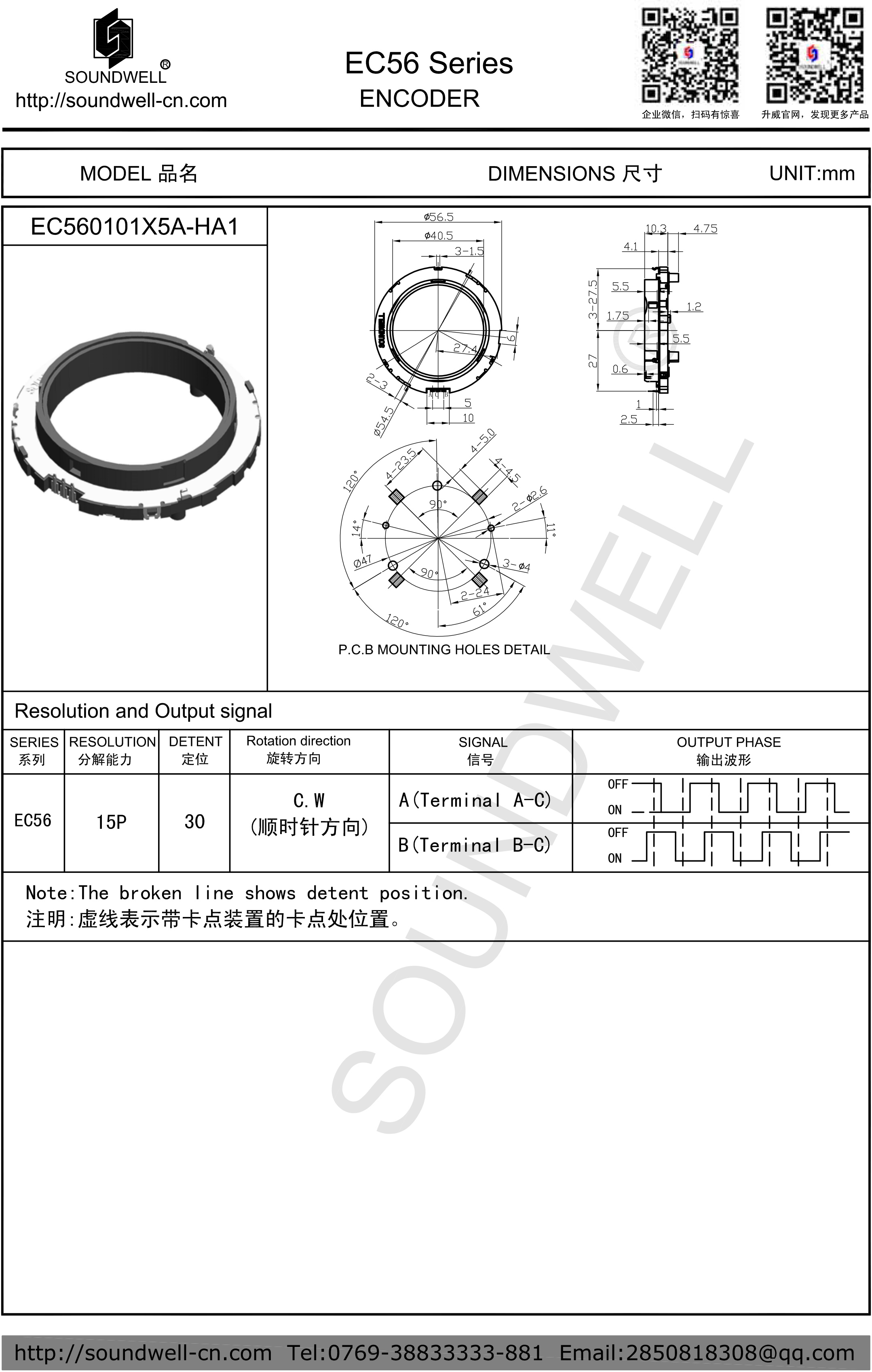

Download EC56 Hollow Encoder.pdf
