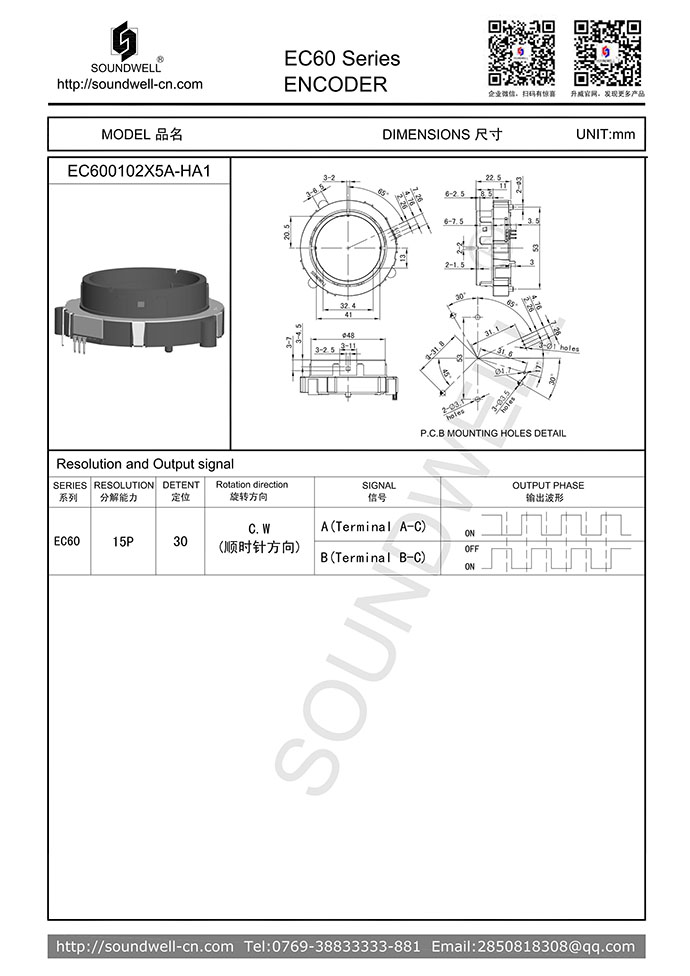

| Encoder model： | EC60 series |
| Name： |
EC60 Hollow Shaft Incremental Encoder |
| Main Specifications: | Dimensions: ∮60mm Rated voltage: DC 10V Number of detent: 30 Pulses: 15 Working temperature: -40°C~85°C Rotational life: 30,000 cycles Min |
| Product Features： |
Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring. |
| Applications： |
Automotive electronics, household appliances and other related electronic devices; Mainly used to adjust volume, adjust temperature, frequency modulation, and function switching. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 400±150gf.cm
2. Number of detent: 30（Step angle 12°±3°）
3. Shaft wobble: 0.2mm Max
4. Shaft play: 2° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 15 pulses/360°
2. Phase difference: ≥6ms
3. Rated voltage: DC 10V
4. Insulation Resistance: 10M? 1 Minute at DC 500V
5. Dielectric Voltage: 1 Minute at AC 500V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
