ES18 Through Shaft Absolute Encoder

ES18 Through Shaft Absolute Encoder

  • Series:ES18

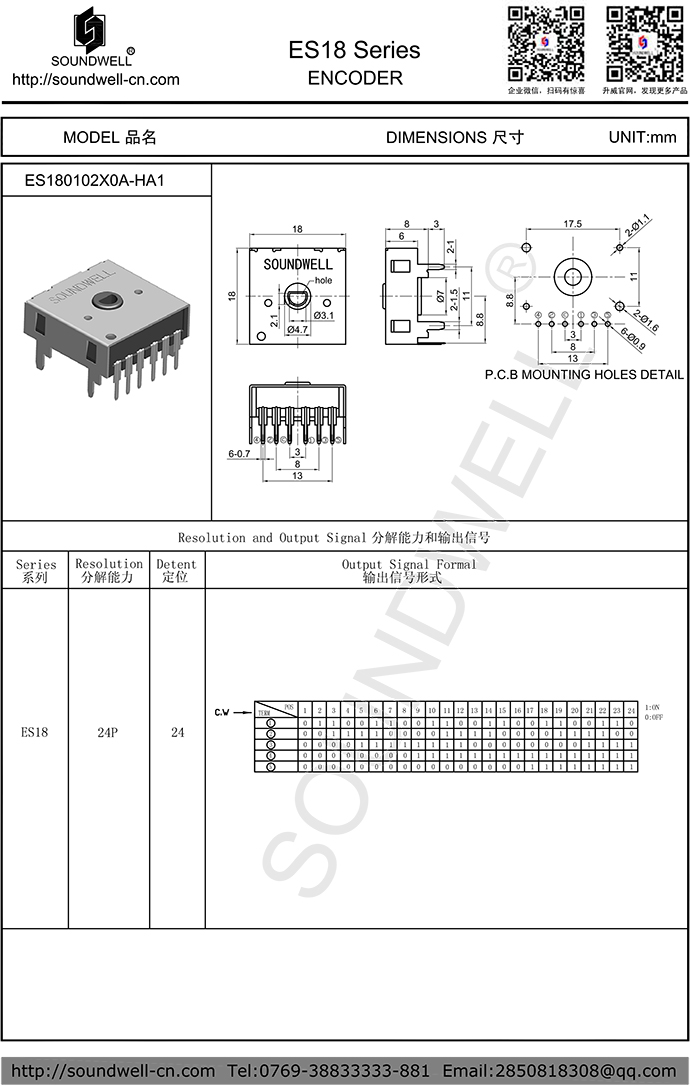

  • Format:See the following profile
  • Specifications

    Encoder model: ES1801 series
    Name:

    ES1801 Through Shaft Rotary Encoder

    Main Specifications:

    Dimensions: 18mm

    Rated power: DC12V 4mA

    Number of detent: 24

    Working temperature: -20℃~85℃

    Rotational life: 30,000 cycles Min

    Product Features:

    Sealed design with reliable performance.

    Through shaft design.

    Applications:

    Household appliances like ovens and washing machines, audio  products, timers and other related electronic devices; the main function as a timer switch, temperature control,switching function.

    ES1801 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational torque: 100~300gf.cm
    2. Rotational angle: 360°
    3. Number of detent: 24

    TWO、ELECTRICAL CHARACTERISTIC
    1. Resolution: 24 pulses/360°
    2. Contact resistance: <100mΩ
    3. Power rating: DC12V 4mA
    4. Insulation resistance: 10M? 1 Minute at DC 100V
    5. Dielectric voltage: 1 Minute at AC 50V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational life: 30,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

    DownloadES18.pdf
