EC21 PIP Hollow Shaft Rotary Encoder

Series：

Format：See the following profile

Specifications　　

Encoder model：	EC21-PIP series
Name：	EC21 PIP Hollow Shaft Incremental Encoder
Main Specifications:	Rated power: DC 5V; Number of detent: 30; Pulses:15; Rotary torque: 110-210 gf.cm Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min;
Product Features：	High temperature resistance, can meet the PIP process; Good operationg feel and clear sense of clicks.
Applications：	Car audio, car air conditioning and other household appliances, related electronic equipment;

EC21 PIP Product Specifications

ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 110-210gf.cm
2. Number of detent: 30 (Step angle: 12±3°)
3. Shaft Wobble: 0.2 mm Max
4. Shaft play: 3°Max

TWO、ELECTRICAL CHARACTERISTIC
      1. Resolution: 15 pulses/360°
2. Phase difference: ≥5ms
3. Power rating: DC 5V
4. Insulation resistance: 100M? 60s±5s at DC 250V
5. Dielectric voltage: AC 300V 60s±5s

THREE、ENDURANCE CHARACTERISTIC
      1. Rotational life: 30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

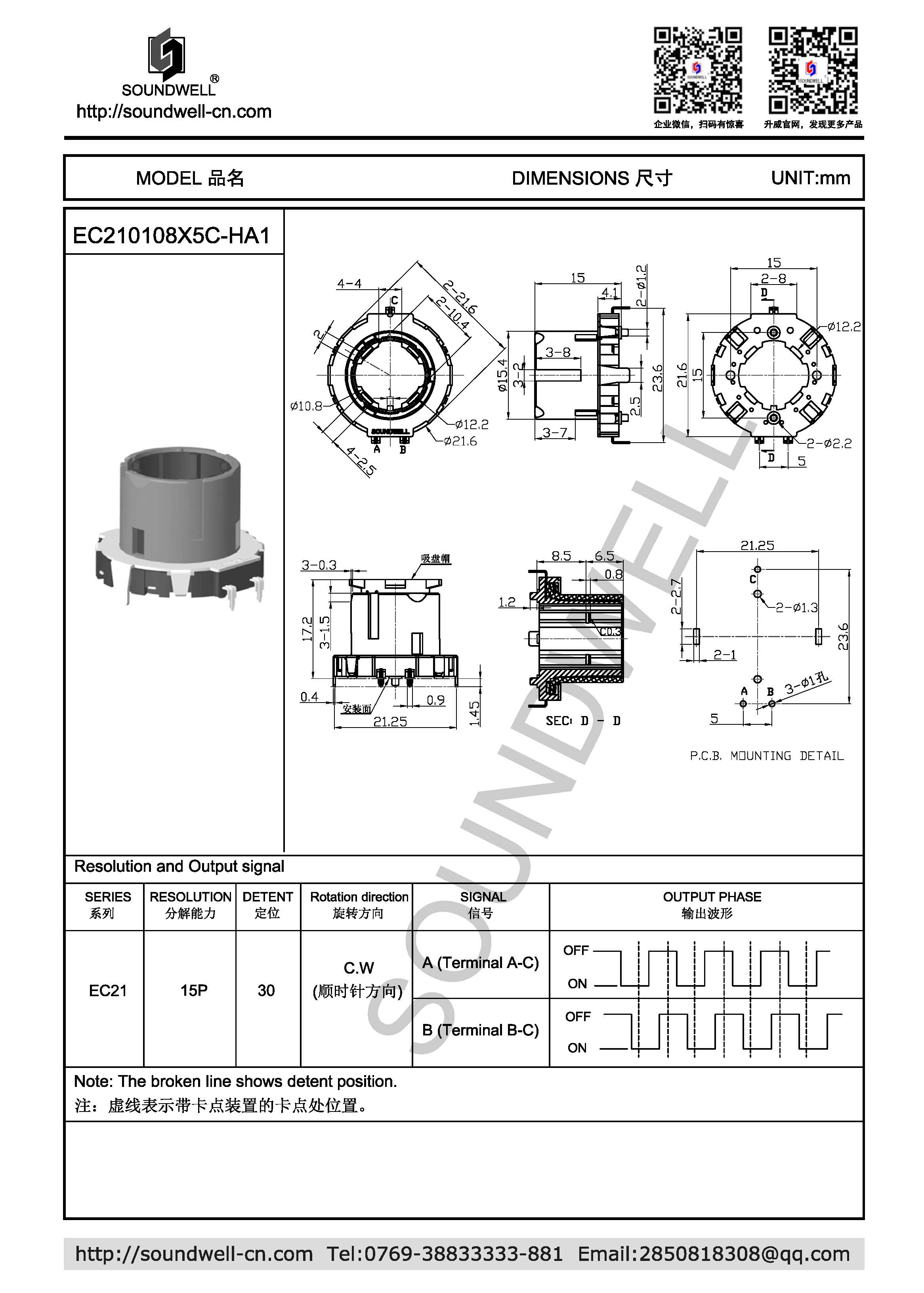

/uploads/images/EC21(PIP)(1).jpg
