Switch model： |
RJ26 series |
|
| Applications： |
Car seats, game consoles. |
|
| Product Features: |
4-direction lateral switches with no pressing function; Available in two terminals (NO) or three terminals (NC and NO) with each switch; Good operation feel with stable performance; Wide application field and high endurance. |
|
| Main Specifications: |
Rated power: DC24V 10A; Contact resistance: 30mΩ Operating force: 650±200gf Electrical contact travel: 1.2±0.3mm Insulation resistance: 100MΩ Dielectric voltage: AC500V 10mA Operating temperature: -40℃～85℃; Operating life: 25,000 cycles Min |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Force: 650±200gf
2. Force Difference: 25% Max
3. Electrical contact travel: 1.2±0.3mm
4. Total Travel: 2.2mm Max
5. Travel Difference: 0.3mm Min
6. Shaft Strength: 10kg Min
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 30mΩ Max
2. Insulation resistance: 100MΩ
3. Dielectric Voltage: AC 500V 10mA
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 25,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

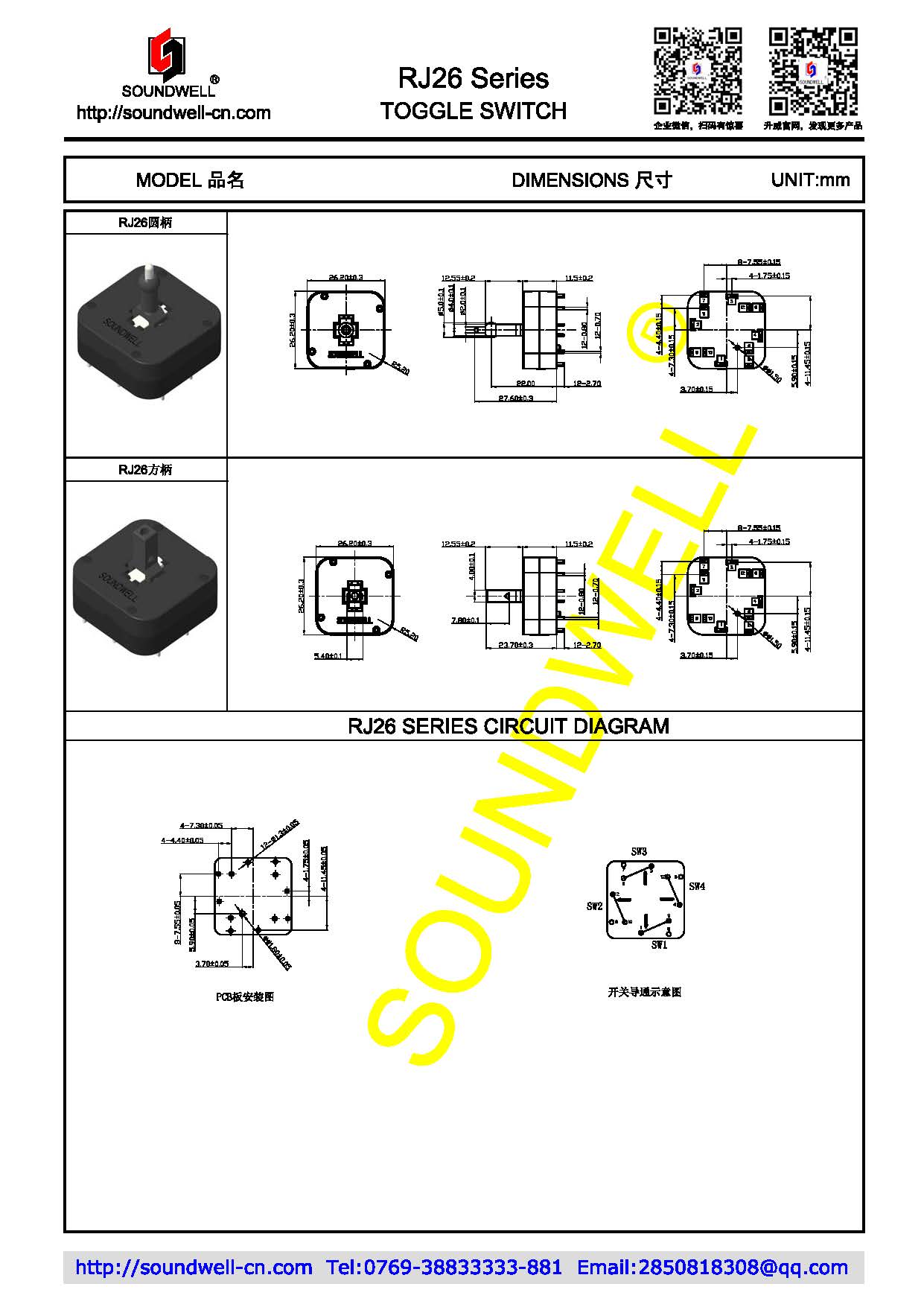

.jpg)
