RS11 Metal Shaft Rotary Self-return Switch
| Switch model： | RS11 series |
| Name： |
RS11 Metal Shaft Self-return Switch |
| Reset switch Specification: | Dimensions: 11mm Rated power: DC5V 10mA Operating temperature: -20℃～70℃ Rotational life: 30,000 cycles Min Push-on switch life: 20,000 cycles Min |
| Product Features： |
Low profile switch with reliable performance; Available with push- on switch (0.5mm travel or 1.5mm travel); |
| Applications： |
Automotive electronics, amplifiers, home appliances or other electronic products; The main functions are function switching, page turning, frequency modulation, volume control and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30~300gf.cm
2. Rotational angle: CW: 45°±10° , CCW: 45°±10°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 1Ω Max
2. Rated power: DC5V 10mA
3. Insulation resistance: 10M? 1 Minute at DC 300V
4. Dielectric voltage: 1 Minute at AC 300V
THREE、PUSH-ON SWITCH CHARACTERISTIC
1. Operating force: 300~900gf
2. Contact resistance: 100mΩ Max
3. Rated power: DC16V 10mA
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 300V
FOUR、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Push-on Switch Life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

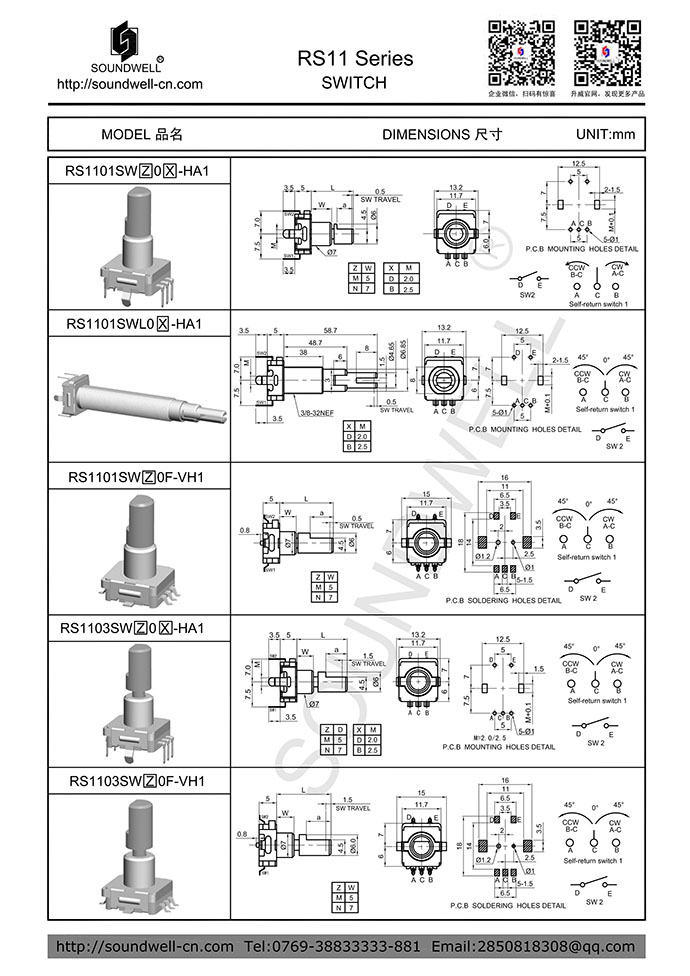

.jpg)
