RS1209 Operating lever and pressing operation type switch
| Encoder model： | RS1209 |
| Name： | Operating lever and pressing operation type switch |
| Main Specifications: | Dimensions：12mm Rated voltage: DC 5V； Operating temperature： －10℃ ～+60℃； Life：100，000次以上； |
| Product Features： | Side to side and up and down the pressing operation, surface mount. |
| Applications： | Products are mainly applied to the photographic equipment, headphones, electronic toys, furniture and other intelligent electronic devices, the main function for switching menu, select functions, adjust volume and so on. |
RS1209ProductSpecifications
ONE、MECHANICAL CHARACTERISTIC
1、 Operation Force ：Push:200±100gf 2-direction:100±50gf
2、Wobble of actuator (mm p-p) ：2mm p-p .
TWO、ELECTRICAL CHARACTERISTIC
1、Rating Power : 10mA, DC 5V
2、Insulation Resistance ：100 MΩ 1 Min at DC 100V
3、Dielectric Voltage ：1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1、Operation Life 100,000 cycles Min

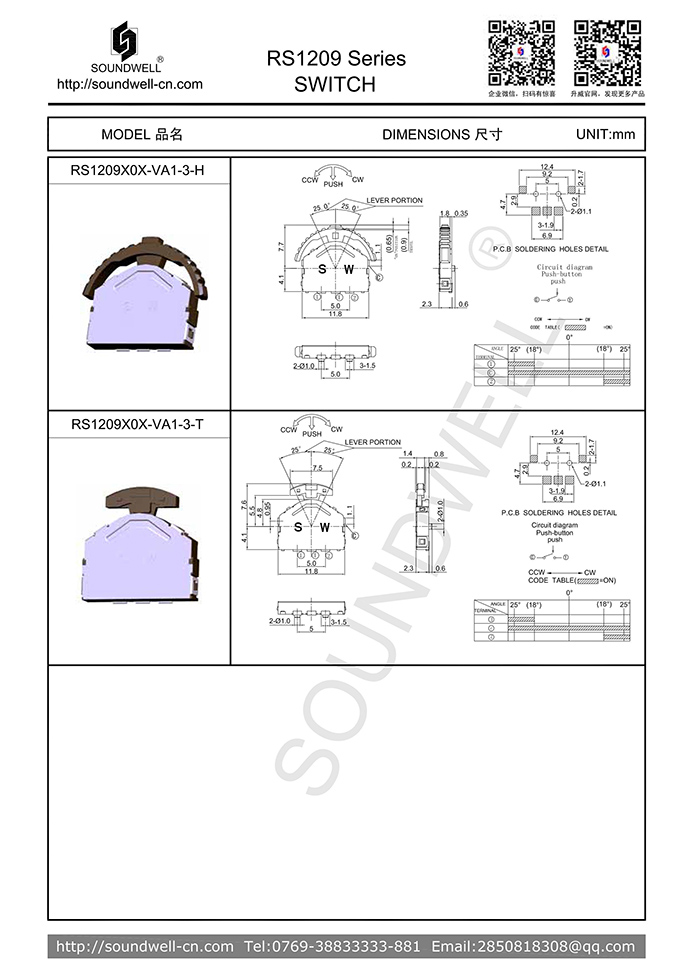

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
