| Switch model： | SS3004 series |
| Name： |
SS3004 Slide Route Switch |
| Main Specifications: | Travel: 29.7mm； Rated power: DC 6V 0.3A； Operating torque: 250±150gf.cm； Operating temperature: -16℃~ 60℃； Operating life: 5,000 Min； |
| Product Features： |
Slide route switch with clear sense of clicks; |
| Applications： |
Amplifiers, instrument or other electronic products; The main functions are volume adjustment, function switching, band adjustment, etc. |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Force: 250gf.cm±150gf.cm
2. Function: 2P12T
TWO、ELECTRICAL CHARACTERISTIC
1. Rated power: DC 6V 0.3A
2. Contact Resistance: 100mΩ max.
3. Insulation Resistance: 100 MΩ 1 Min at DC 500V
4. Dielectric Voltage: 1 Minute at AC 500V
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 5,000 Min

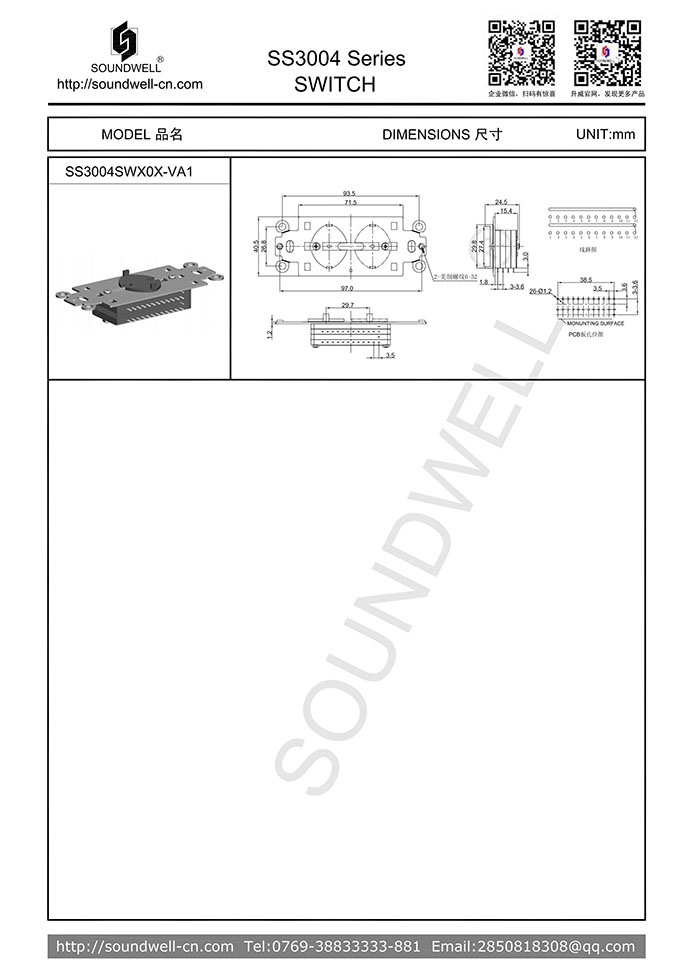

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
