RS1004 Metal Shaft Rotary Self-return Switch
| Reset Switch Model： | RS1004 series |
| Name： |
RS1004 Metal Shaft Rotary Self-return Switch |
| Main Specifications: | Dimensions: 10mm； Rated power: DC 16V 0.1A； Contact resistance: 50mΩ Max； Operating temperature: -20℃～60℃； Rotational life: 15,000 cycles Min； |
| Product Features： |
Available in horizontal & vertical mounting; Available in various shaft options; |
| Applications： |
Automotive electronics, amplifiers or other electronic products; The main functions are function switching, page turning, volume control and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 80-300gf.cm
2. Rotational Angle: CW: 30°±5° ; CCW: 30°±5°
3. Shaft wobble: 1.0*L/30mm p-p Max (L: mounting height)
TWO、ELECTRICAL CHARACTERISTIC
1. Rated Power: 0.1A，DC 16V
2. Contact resistance: 50mΩ Max
3. Insulation Resistance: 100 MΩ 1 Min at DC 100V
4. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 15,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

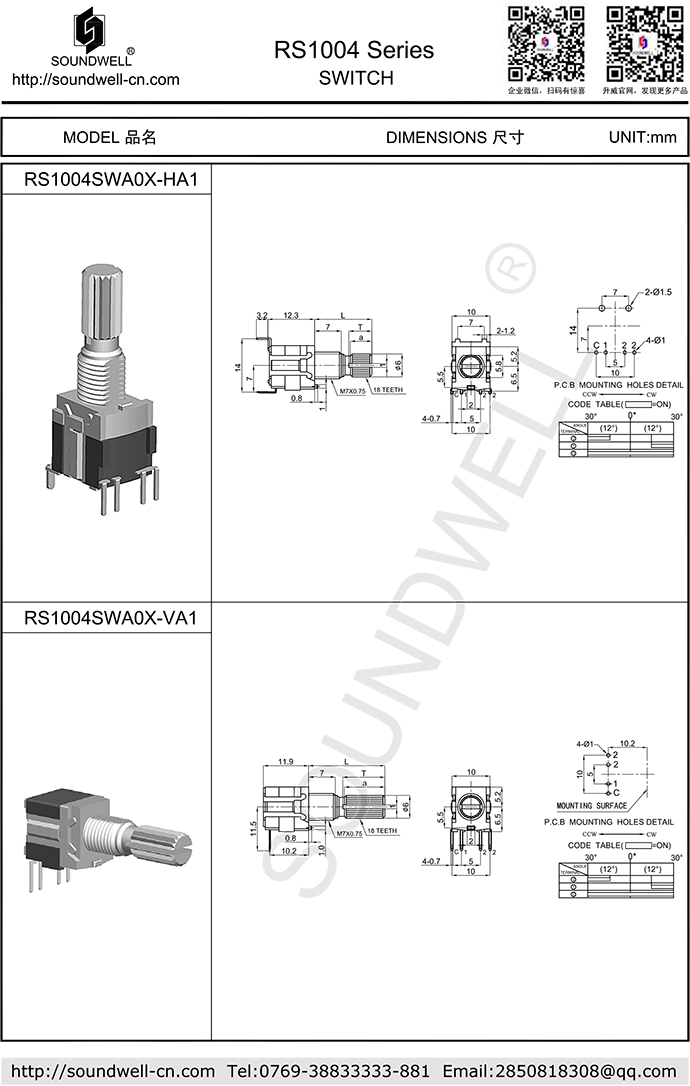

Download RS1004 finished map1.pdf
