| switch model： | TS06 series |
| Name： |
TS06 Tactile Switch |
| Main Specifications: | Rated voltage: DC 15V Maximum rated current: 20mA Switch travel: 0.7±0.15mm Push operating force: 380±45 gf Operating temperature: -40℃ ～95℃ Operating life: 200,000 cycles Min |
| Product Features： |
Small size with good operating feel; |
| Applications： |
Automotive control panel and other household appliances, related electronic equipment. |
ONE、MECHANICAL CHARACTERISTIC
1. Push operating force: 380±45 gf
2. Switch travel: 0.7±0.15mm
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 500mΩ Max
2. Rated voltage: DC15V
3. Insulation resistance: 1M? 60s±5s at DC 500V
4. Dielectric voltage: AC 500V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 200,000 cycles Min
2. Protection level: IP6X
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

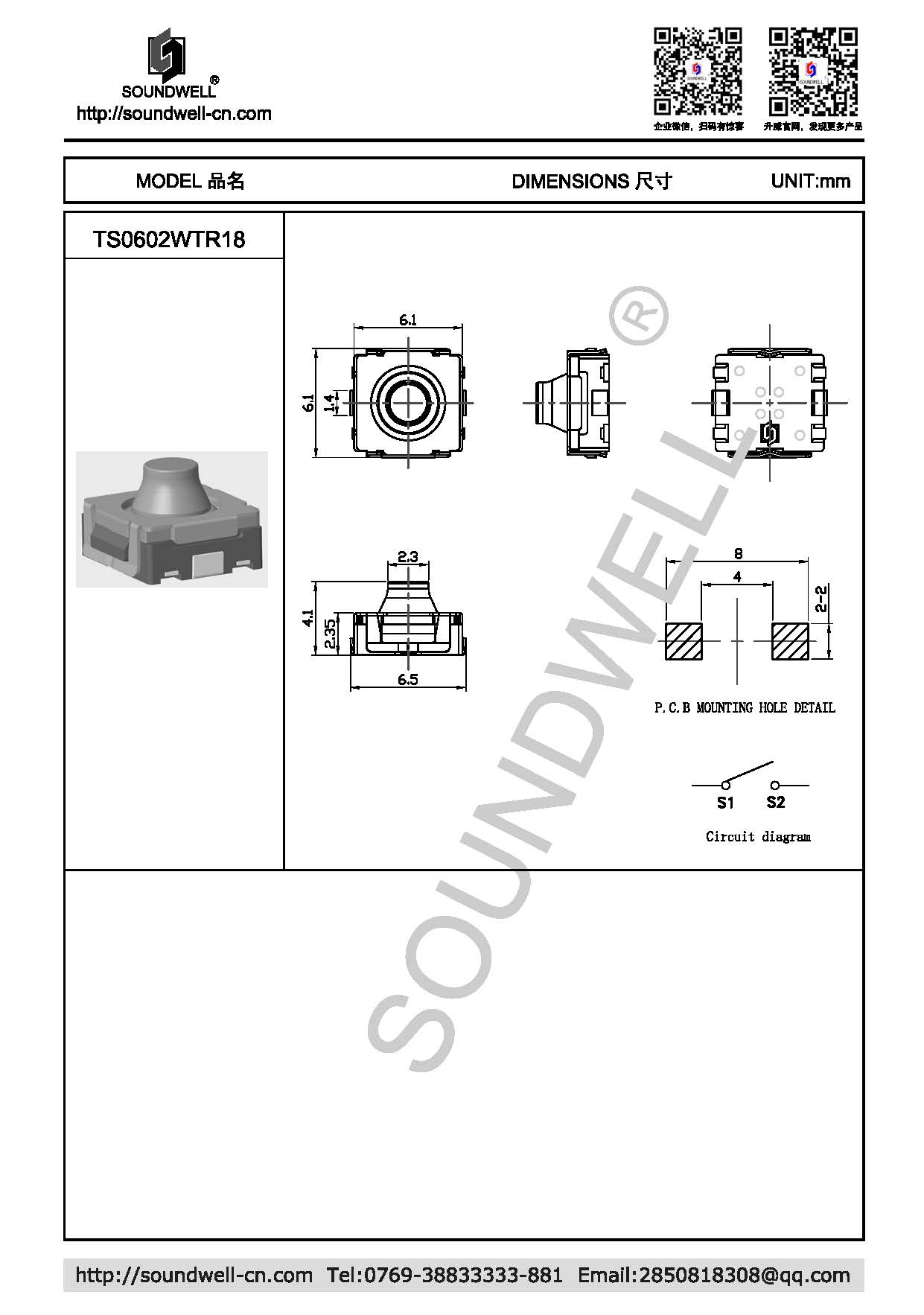

/uploads/images/TS0602%20(1).jpg
