RS26 Insulated Shaft Rotary Route Switch

  • Series:RS26
  • Format:See the following profile
  • Specifications

    Multiple Switch Model:
    RS26 series
    Name: RS26 Insulated Shaft Rotary Route Switch
    Main Specifications: Dimensions: 26mm
    Rated power: DC30V 0.3A
    Contact resistance: 100mΩ Max
    Number of positions: 2~12
    Operating temperature: -20℃~70℃
    Rotational life: 10,000 cycles Min
    Product Features:

    Insulated shaft with clear sense of clicks;

    1-4 poles and 2-12 positions;

    Applications:

    Home appliances such as micro- wave ovens, washing machines,

    audio devices, health care systems or other electronic products;

    The main functions are function switching, speed adjustment,

    temperature adjustment and so on.

    RS26 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational torque: 200~1000gf.cm
    2. Step angle: 30°±3°
    3. Number of positions: 2~12

    TWO、ELECTRICAL CHARACTERISTIC
    1. Contact resistance: 100mΩ Max
    2. Rated power: DC30V 0.3A
    3. Insulation resistance: 100M? 1 Minute at DC 500V
    4. Dielectric voltage: 1 Minute at AC 500V
    5. Contact mode: Short circuit type/Non short circuit type

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational Life: 10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

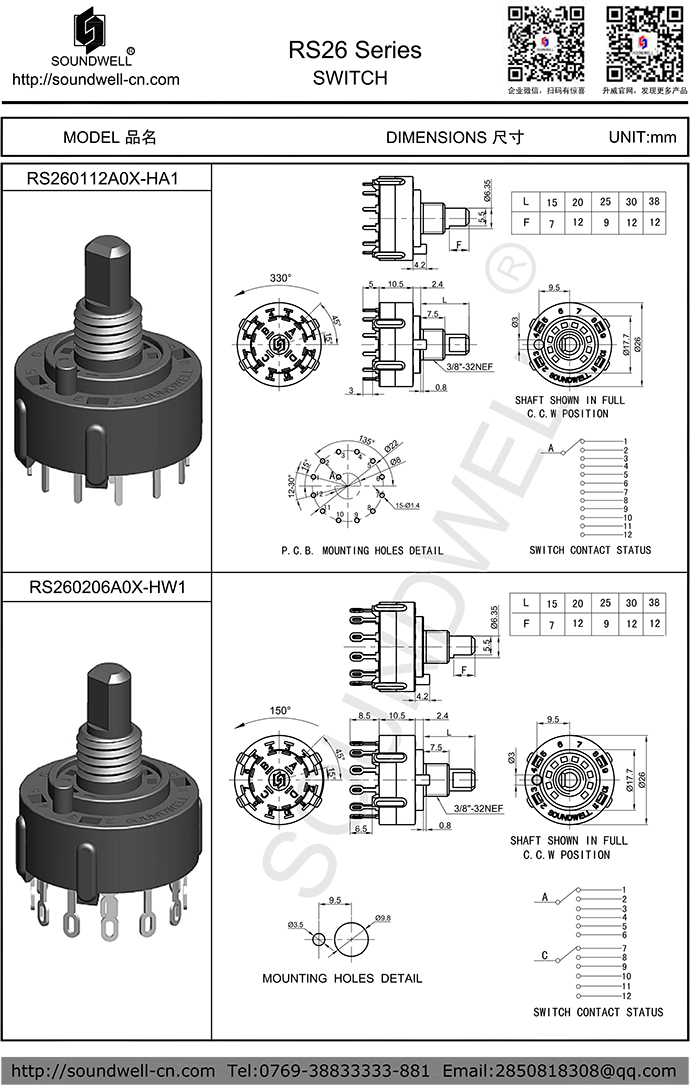

    DownloadRS26-1.pdf

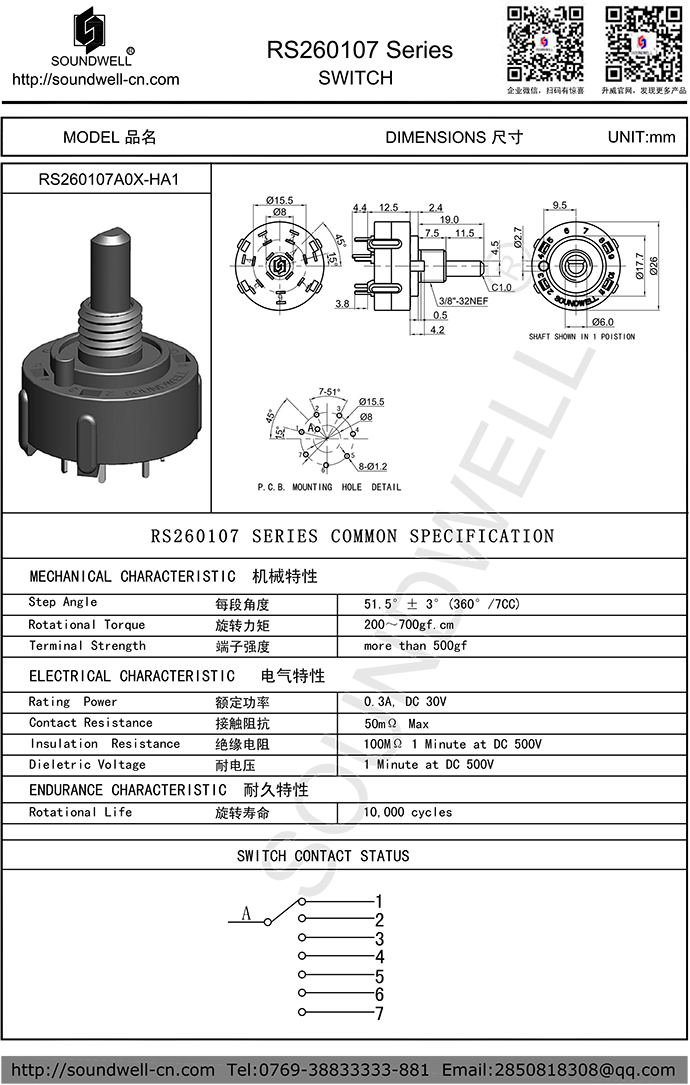

    DownloadRS26-2.pdf

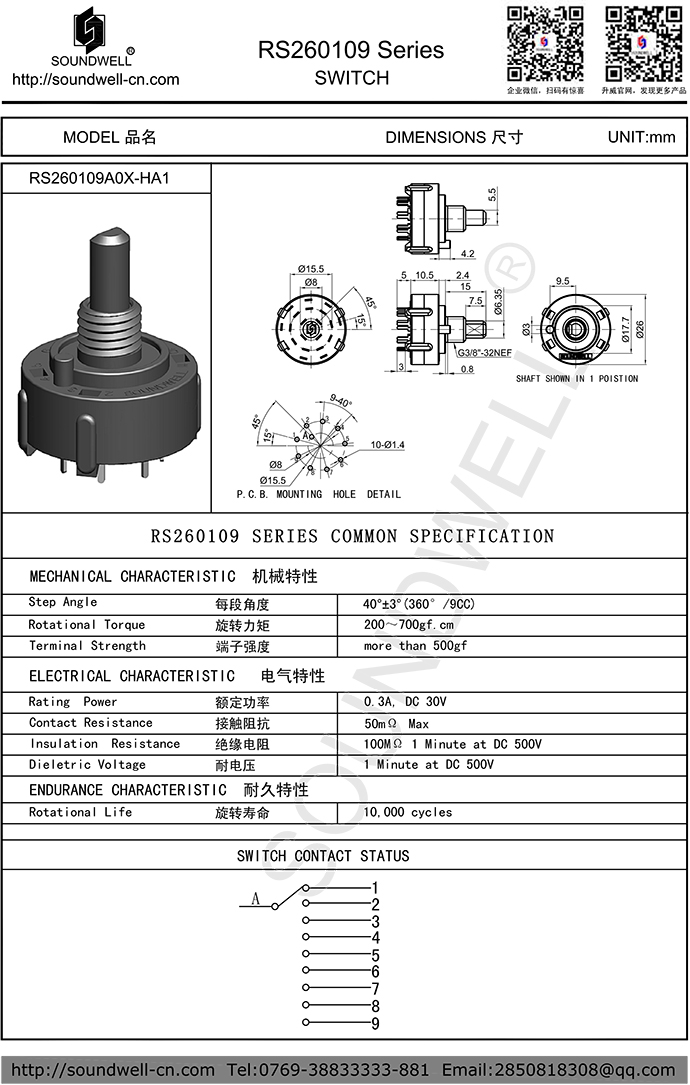

    DownloadRS26-3.pdf
