RS1701 Metal Shaft Rotary Route Switch

  • Series:RS1701
  • Format:See the following profile
  • Specifications

    multi-way switch model: RS1701 series
    Name:

    RS1701 Metal Shaft Rotary Route Switch

    Main Specifications: Dimensions: 17mm
    Number of positions: 2~9
    Step angle: 30°±3°
    Rated power: DC16V 0.3A
    Contact resistance: 100mΩ Max
    Rotational torque: 100~600gf.cm
    Switch operating force: 250~650gf
    Operating temperature: -10℃ ~70℃
    Operating life: 10,000 cycles Min
    Product Features:

    2~9 positions available with clear sense of clicks;
    Available in various shaft options;

    Applications:

    Microwave oven, washing machine and other white household appliances, can also be used in multimedia audio/power amplifier, medical equipment. The main functions are function switching, speed control, temperature adjustment and so on.

    RS1701 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational torque: 100~600gf.cm
    2. Switch operating force: 250~650gf
    3. Number of positions: 2~9
    4. Step angle: 30°±3°

    TWO、ELECTRICAL CHARACTERISTIC

    1. Contact resistance: 100mΩ Max
    2. Power rating:  DC16V  0.3A
    3. Insulation resistance: 100M? 1 Minute at  DC 250V
    4. Dielectric voltage: 1 Minute at  AC 300V

    THREE、ENDURANCE CHARACTERISTIC

    1. Rotational life: 10,000 cycles Min
    2. Push operating life: 20,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

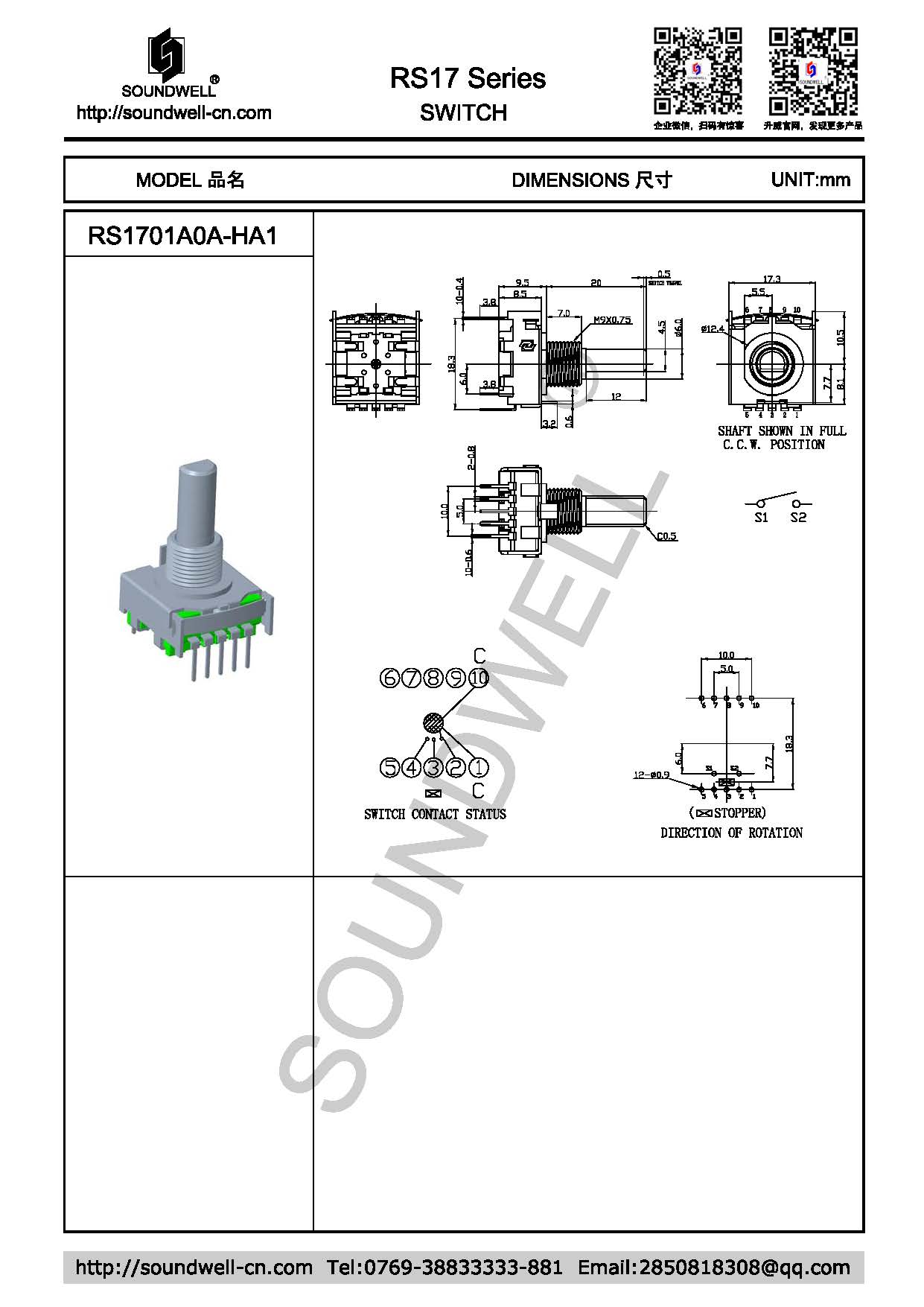

    /uploads/images/RS1701-1.jpg
